Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

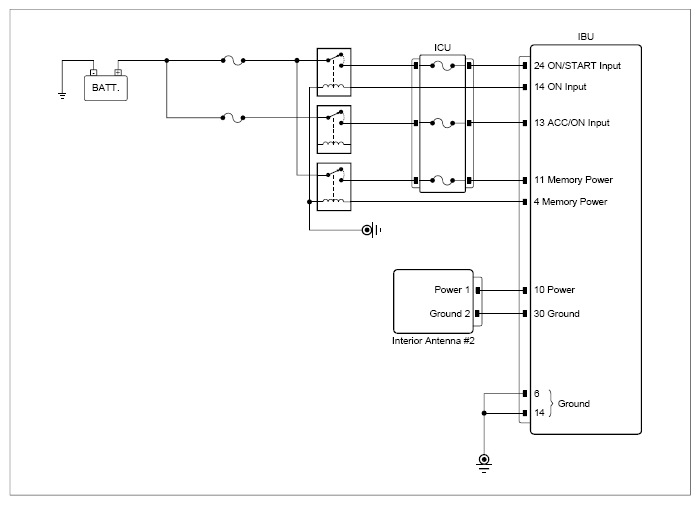

G14962276Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 Interior antenna #2 connector 1 (power) Chassis ground - Approx. 0V
Interior antenna #2 connector 2 (ground) Chassis ground - Approx. 0V
  1. Ignition "OFF".
  2. Disconnect the auxiliary battery (-) terminal.
  3. Disconnect the electrical connector(s) from the concerned component.
 Interior antenna #2 connector 1 (power) Chassis ground - ∞ (infinity)Ω
Interior antenna #2 connector 2 (ground) Chassis ground - Approx. below 1Ω
Interior antenna #2 connector 1 (power) IBU connector 10 (power) Approx. below 1Ω

Good

No Good
