Circuit Inspection: Notes
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Moduel Inspection | |||||
|---|---|---|---|---|---|
| Terminal | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
| 1. Ignition "ON". | SCU connector | 1, 12, 36 (power) | Chassis ground | - | B+ |
| Chassis ground 2. Disconnect the cable from auxiliary battery (-) connector in the engine room.3. Disconnect the electrical connector(s) from the concerned component. |
SCU connector | 2, 38 (ground) | Chassis ground | - | Approx. below 1Ω |
Good

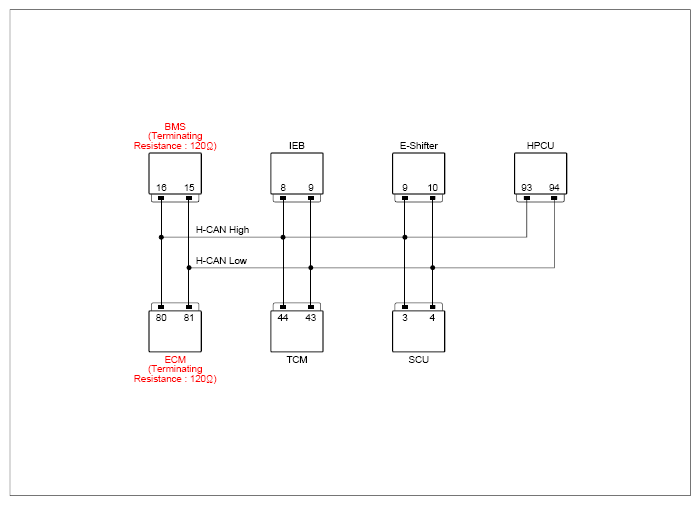

• Go to ("H-CAN Inspection ") procedure.
No Good
• Repair as necessary and then go to ("Verification Of Repair ") procedure.
