Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

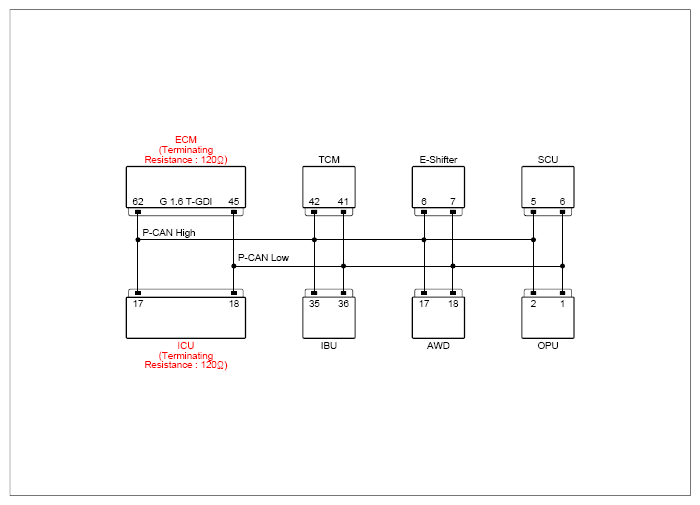

Ignition "OFF". Disconnect the auxiliary battery (-) terminal. Disconnect the electrical connector(s) from the concerned component.	TCM connector	42 (P-CAN high)	TCM connector	41 (P-CAN low)	Approx. 60Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	TCM connector	67, 68 (Memory power)	Chassis ground	-	B+
	TCM connector	16 (ON/START Input)	Chassis ground	-	B+
Ignition "OFF". Disconnect the auxiliary battery (-) terminal. Disconnect the electrical connector(s) from the concerned component.	TCM connector	71, 73, 74 (ground)	Chassis ground	-	Approx. below 1Ω

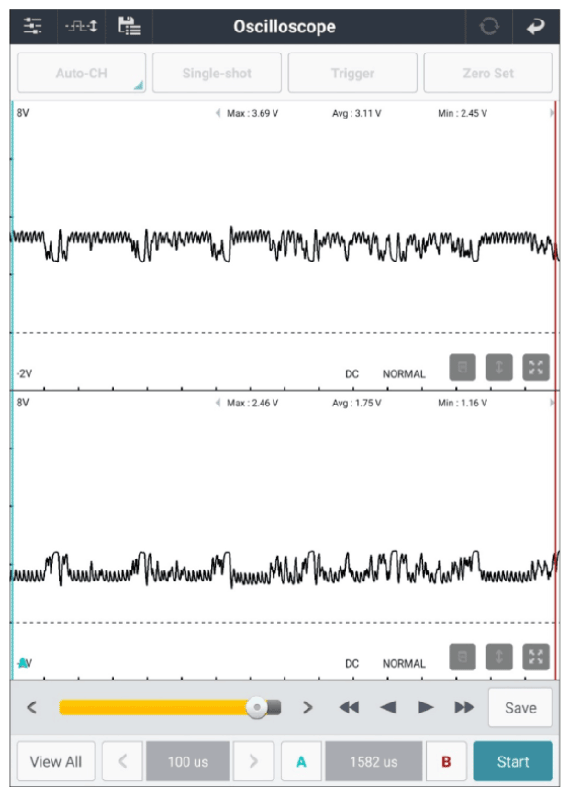

Ignition "ON". Connect VMI to KDS and launch the oscilloscope.	TCM connector	42 (P-CAN high)	Chassis ground	-	Fig.1
	TCM connector	41 (P-CAN low)	Chassis ground	-	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then Go to "Verification Of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace TCM and then Go to "Verification Of Repair " procedure.

If a module is replaced, perform the relevant "Vehicle S/W Management" procedure.
