Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
  3. Select "Clear Learning Value" in "Vehicle S/W management".
  4. After operation, perform the "Verification Of Repair " procedure.
 Fig.1 to 4

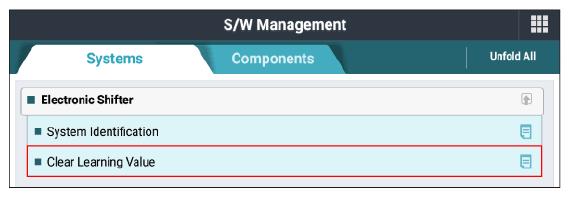

G14941001Courtesy of KIA MOTORS AMERICA, INC.

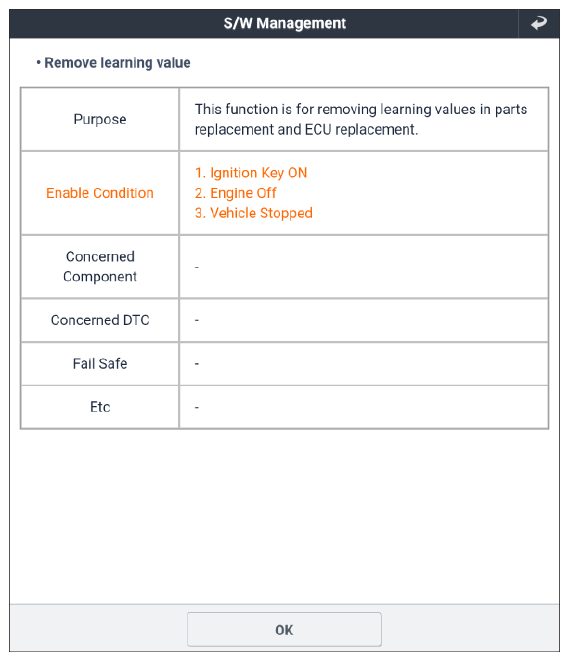

G14941002Courtesy of KIA MOTORS AMERICA, INC.

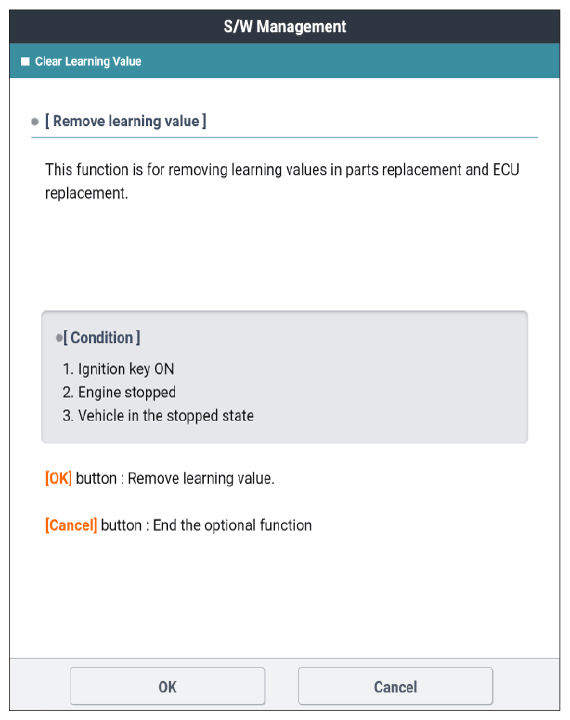

G14941003Courtesy of KIA MOTORS AMERICA, INC.

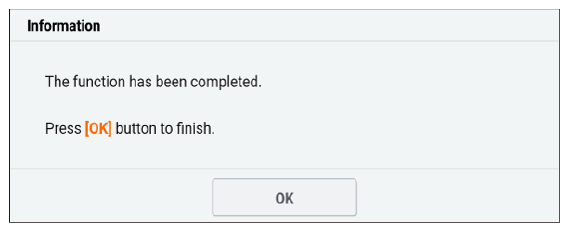

G14941004Courtesy of KIA MOTORS AMERICA, INC.
