Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON". 1. Connect KDS to "Data Link Connector (DLC)".
2. Perform "Vehicle S/W Management" of concerned component with KDS.
3. Select "Clear Learning Value" in "Vehicle S/W management".
4. After operation, perform the "Verification of Repair" procedure.		 Fig.1 to 4

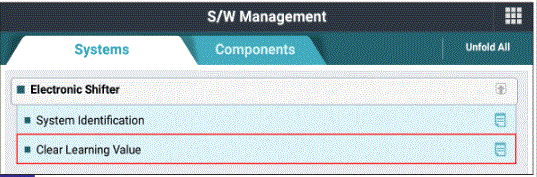

G00672003Courtesy of KIA MOTORS AMERICA, INC.

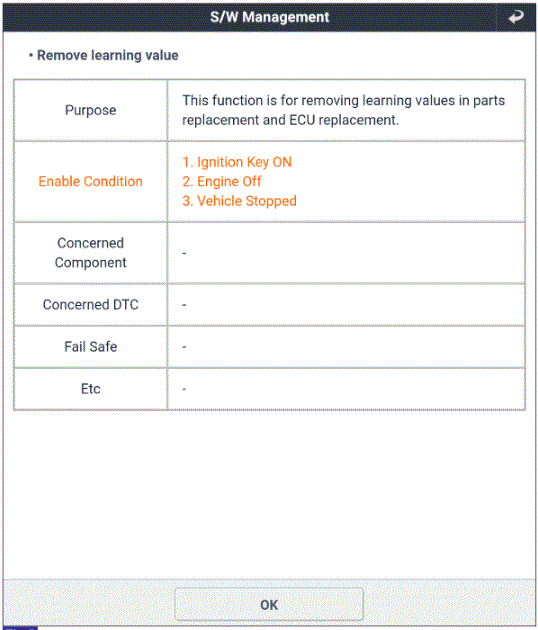

G00672004Courtesy of KIA MOTORS AMERICA, INC.

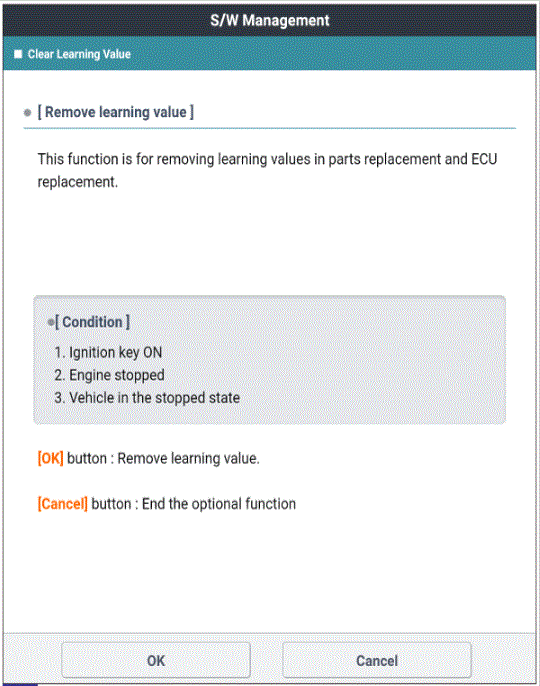

G00672005Courtesy of KIA MOTORS AMERICA, INC.

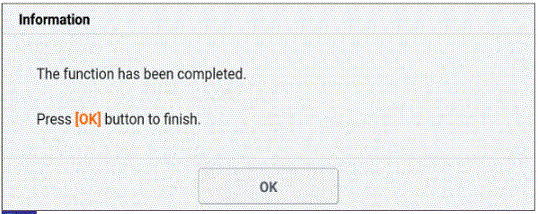

G00672006Courtesy of KIA MOTORS AMERICA, INC.
