Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
SBW actuator connector | 4 (SR motor power HSD) | Chassis ground | - | Approx. 2.3V |
| SBW actuator connector | 5 (U phase) | Chassis ground | - | Approx. 2.3V | |
| SBW actuator connector | 10 (V phase) | Chassis ground | - | Approx. 2.3V | |
| SBW actuator connector | 9 (W phase) | Chassis ground | - | Approx. 2.3V | |
|
SBW actuator connector | 4 (SR motor power HSD) | SCU connector | 37 (SR motor power HSD) | Approx. below 1Ω |
| SBW actuator connector | 5 (U phase) | SCU connector | 33 (U phase) | Approx. below 1Ω | |
| SBW actuator connector | 10 (V phase) | SCU connector | 34 (V phase) | Approx. below 1Ω | |
| SBW actuator connector | 9 (W phase) | SCU connector | 35 (W phase) | Approx. below 1Ω | |
|

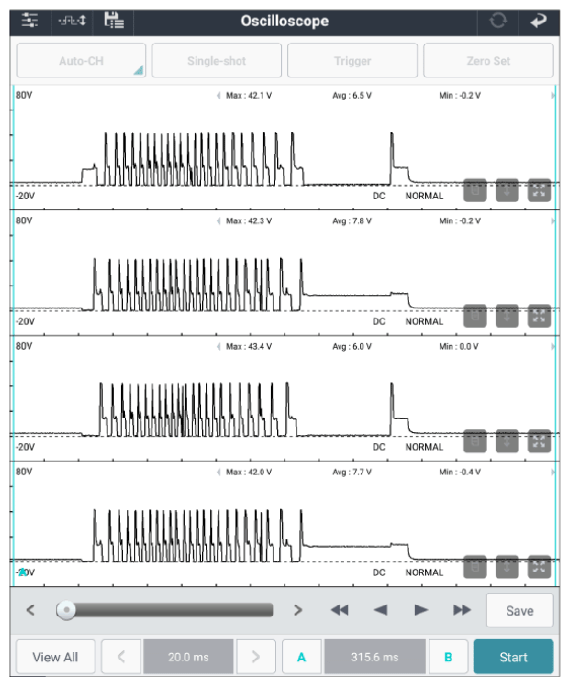

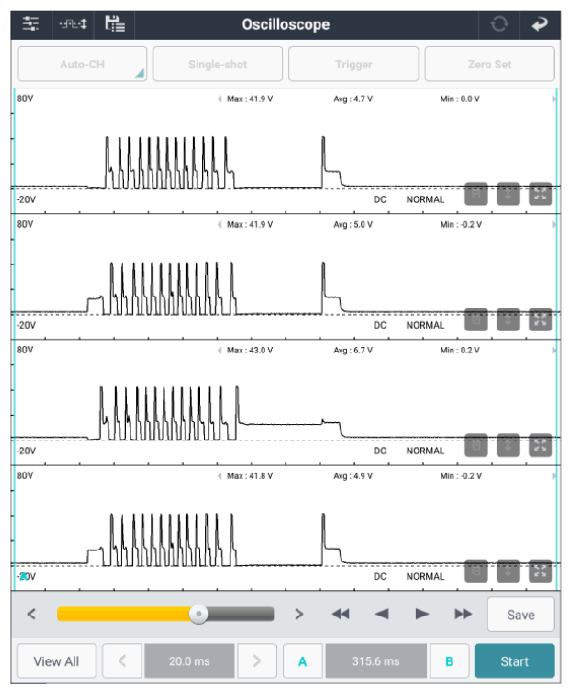

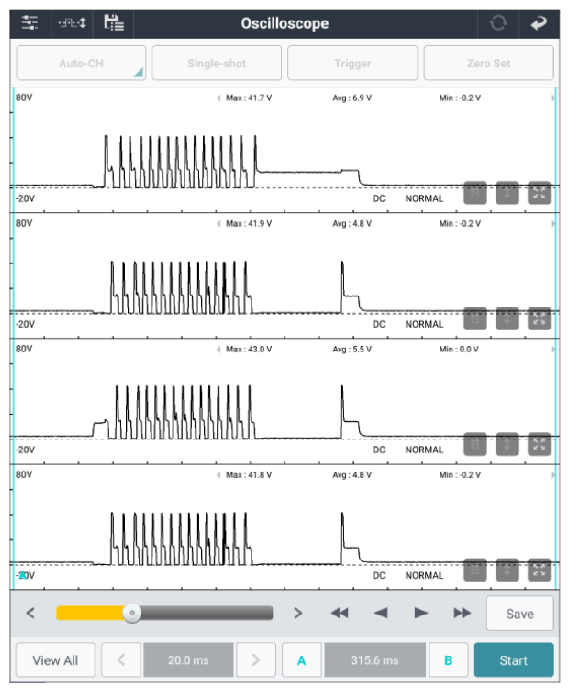

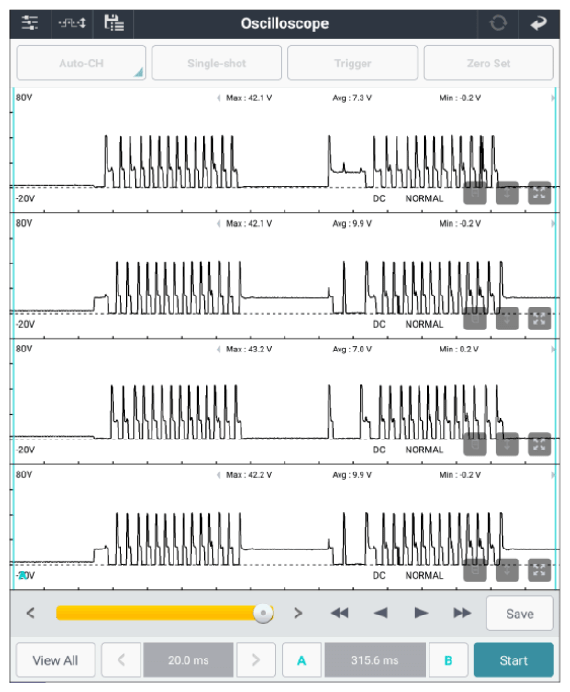

SBW actuator connector | 4 (SR motor power HSD) | SBW actuator connector | 5 (U phase) | Fig.1 to 4 |
| SBW actuator connector | 9 (W phase) | SBW actuator connector | 10 (V phase) | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
- Check the module circuit for open circuits or short circuits to perform the "Verification Of Repair " procedure after repair.
