Monitor KDS Data
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

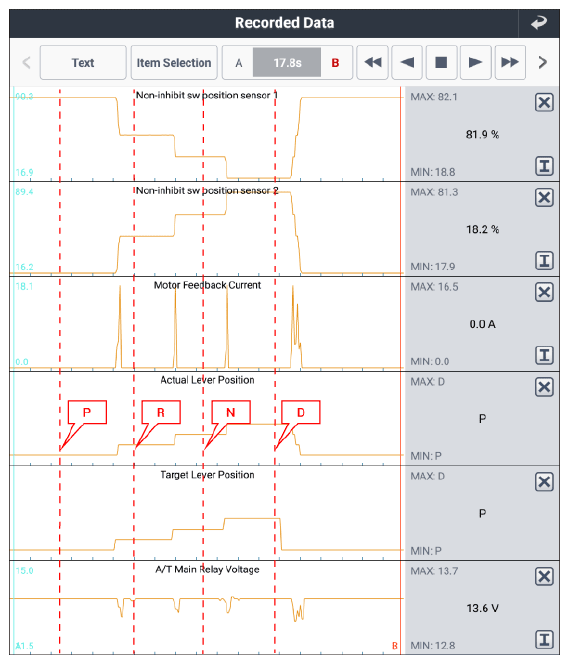

Fig.1 |
Good
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "Verification Of Repair " procedure.
No Good
- P070661 indicates that alignment between SBW systems is incorrect. Therefore, do not replace the SBW actuator and position sensor and check alignment of the SBW position sensor.
- Go to "Check The Alignment Of SBW Position Sensor " procedure.
