Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

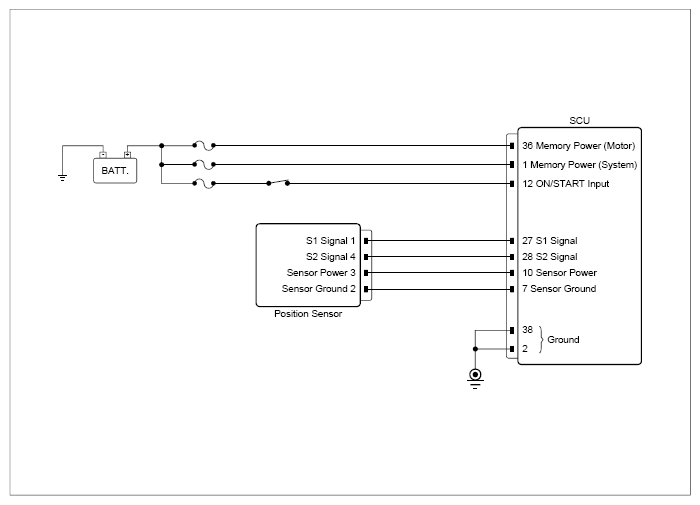

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Position sensor connector | 3 (power) | Chassis ground | - | 5V |
|
SCU connector | 27 (S1 signal) | Position sensor connector | 1 (S1 signal) | Approx. below 1Ω |
| SCU connector | 28 (S2 signal) | Position sensor connector | 4 (S2 signal) | Approx. below 1Ω | |
| Position sensor connector | 1 (S1 signal) | Chassis ground | - | ∞ (infinity)Ω | |
| Position sensor connector | 4 (S2 signal) | Chassis ground | - | ∞ (infinity)Ω | |
|

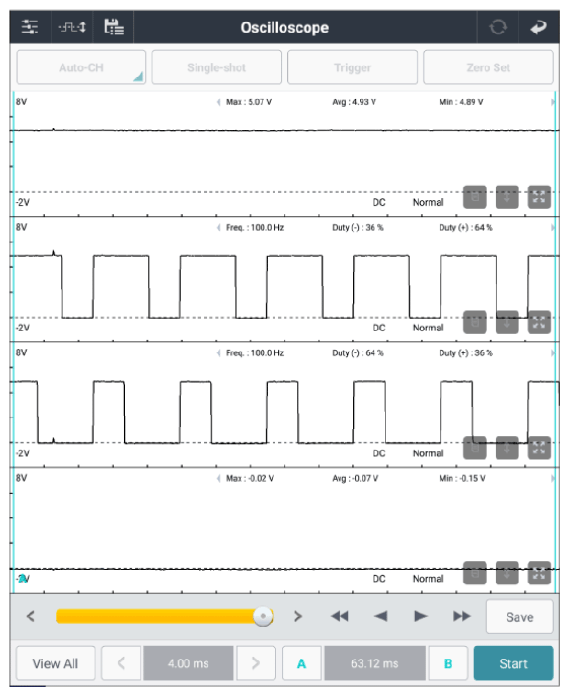

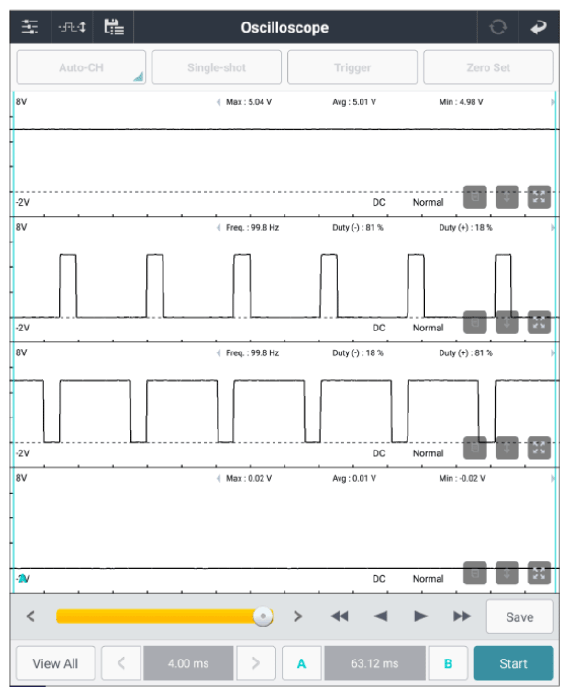

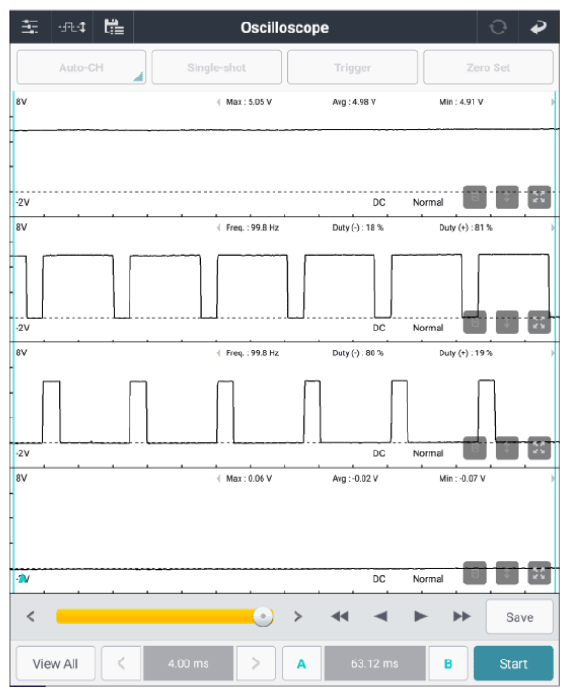

Position sensor connector | 3 (power) | Position sensor connector | 4 (S2 signal) | Fig.1 to 4 |
| Position sensor connector | 1 (S1 signal) | Position sensor connector | 2 (ground) | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or SCU's connector or was repaired and SCU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "Verification Of Repair " procedure.
- If no symptoms are present but the DTC is not cleared, perform the "Verification Of Repair " procedure after performing the "Clear Learning Value" procedure in "Vehicle S/W Management".
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
- If no problems were found with the circuits or connectors, replace the position sensor and Go to "Verification Of Repair " procedure.
