Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

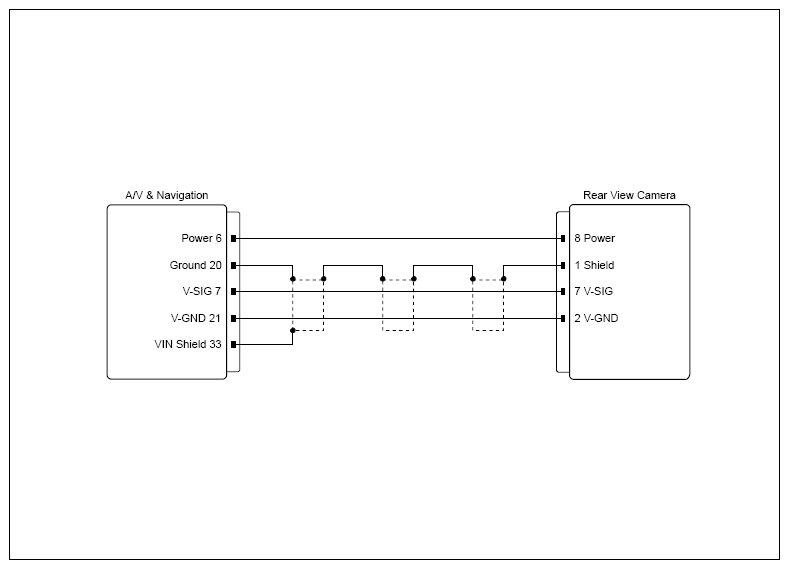

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
RVM camera connector | 1 (shield) | Chassis ground | - | Approx. below 1Ω |
|
RVM camera connector | 8 (power) | Chassis ground | - | Approx. 6.5V |
| RVM camera connector | 8 (power) | RVM camera connector | 1 (shield) | Approx. 6.5V | |
|
RVM camera connector | 8 (power) | AVN/Audio connector | 6 (power) | Approx. below 1Ω |
| RVM camera connector | 7 (signal) | AVN/Audio connector | 7 (signal) | Approx. below 1Ω | |
| RVM camera connector | 2 (ground) | AVN/Audio connector | 21 (ground) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair open or short in circuit and then go to "COMPONENT INSPECTION " procedure.
