Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS/GDS.
 Fig.1 to 5

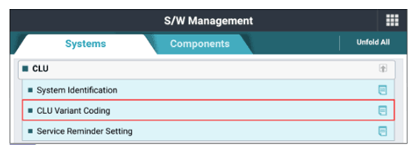

G14960288Courtesy of KIA MOTORS AMERICA, INC.

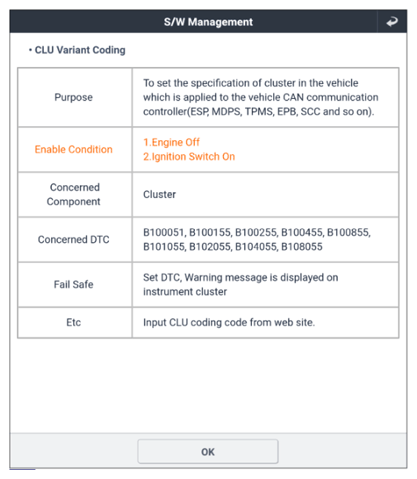

G14960289Courtesy of KIA MOTORS AMERICA, INC.

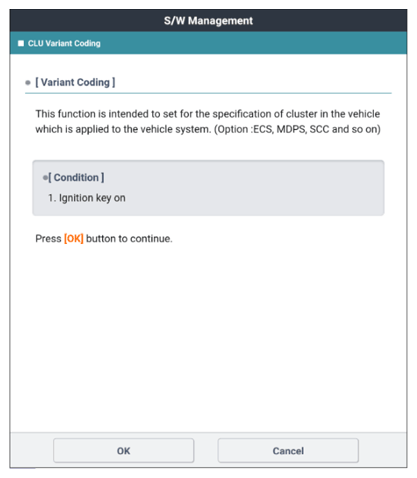

G14960290Courtesy of KIA MOTORS AMERICA, INC.

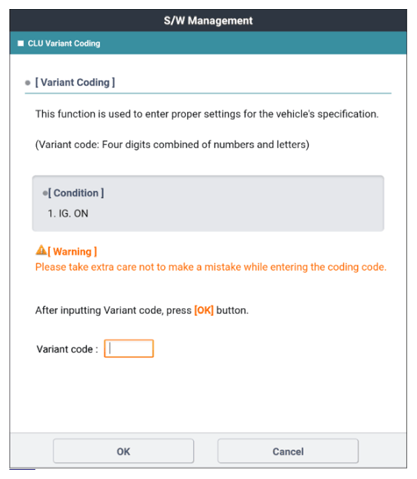

G14960291Courtesy of KIA MOTORS AMERICA, INC.

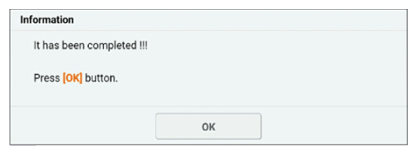

G14960292Courtesy of KIA MOTORS AMERICA, INC.
