Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
IEB connector | 1, 6 (power) | Chassis ground | - | B+ |
|
IEB connector | 14, 46 (ground) | Chassis ground | - | Approx. below 1Ω |
|

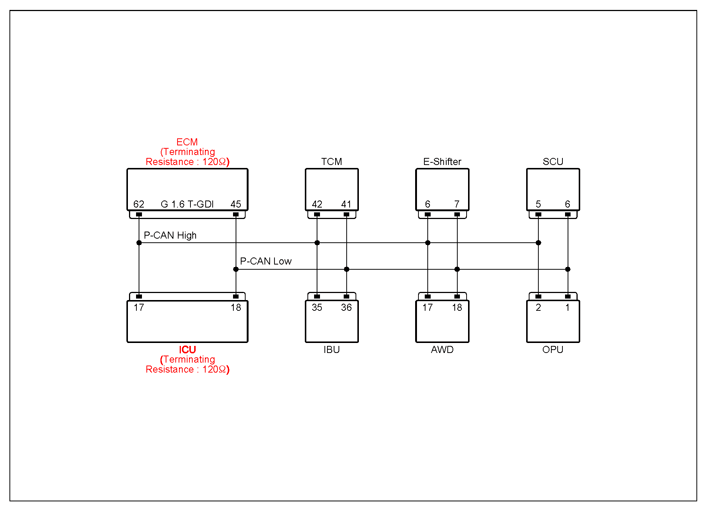

AWD ECU connector | 17 (P-CAN high) | Chassis ground | - | Fig.1 |
| AWD ECU connector | 18 (P-CAN low) | Chassis ground | - | ||
|
AWD ECU connector | 17 (P-CAN high) | ICU connector | 17 (P-CAN high) | Approx. below 1Ω |
| AWD ECU connector | 18 (P-CAN low) | ICU connector | 18 (P-CAN low) | Approx. below 1Ω | |
| ICU connector | 20 (C-CAN high) | IEB connector | 4 (C-CAN high) | Approx. below 1Ω | |
| ICU connector | 19 (C-CAN low) | IEB connector | 5 (C-CAN low) | Approx. below 1Ω | |
|
IEB connector | 4 (C-CAN high) | Chassis ground | - | Fig.2 |
| IEB connector | 5 (C-CAN low) | Chassis ground | - | ||
Good
- If wiring and connectors are intact and symptoms persist, Check the brake system and replace the IEB module if necessary and then Go to "Verification Of Repair " procedure.
No Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, or damage.
- Check and repair CAN lines for open circuits or short circuits, Go to "Verification Of Repair " procedure.
