Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

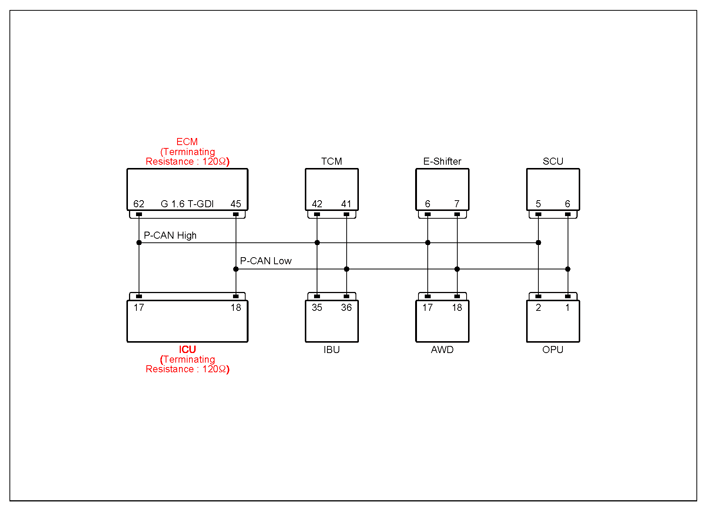

G14960246Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "ON".
 AWD motor connector 17 (P-CAN high) Chassis ground - Fig.1
AWD motor connector 18 (P-CAN low) Chassis ground -
  1. Ignition "ON".
  2. Disconnect the auxiliary battery (-) terminal.
  3. Disconnect the electrical connector(s) from the concerned component.
 AWD motor connector 17 (P-CAN high) AWD ECU connector 18 (P-CAN low) Approx. 60Ω
G14960247Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
