Monitor DTC Status

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

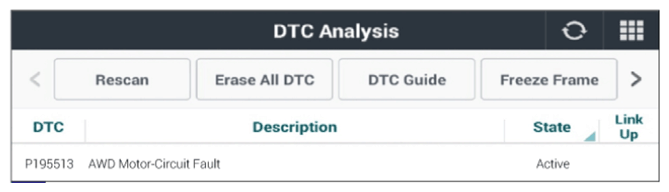

 Fig.1
G14960211Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
