Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW (BSD) Radar Calibration" under "Vehicle S/W Management".
 Fig.1 to 4

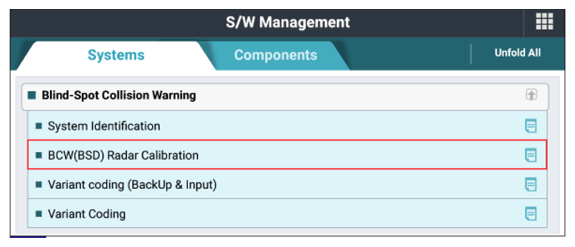

G14967863Courtesy of KIA MOTORS AMERICA, INC.

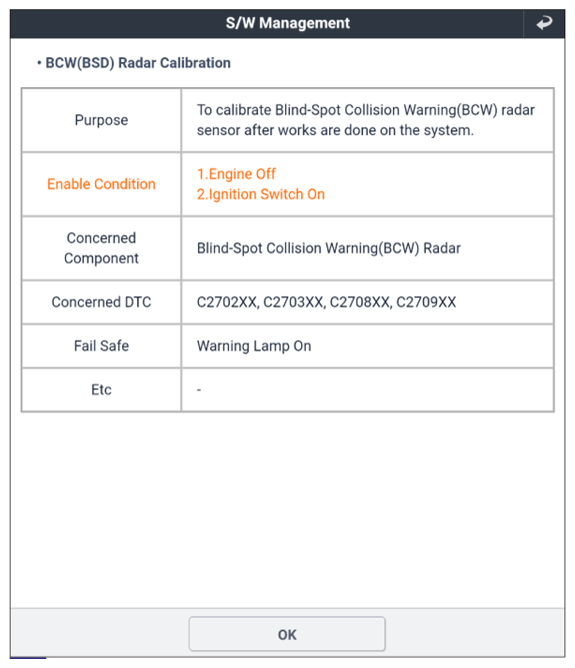

G14967864Courtesy of KIA MOTORS AMERICA, INC.

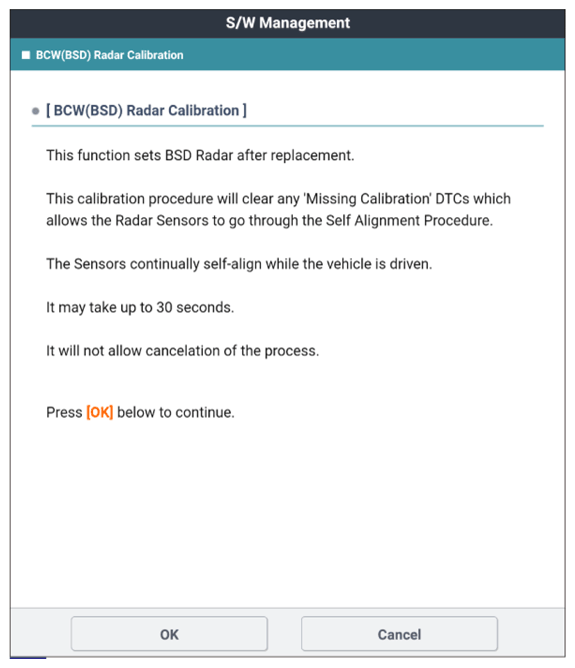

G14967865Courtesy of KIA MOTORS AMERICA, INC.

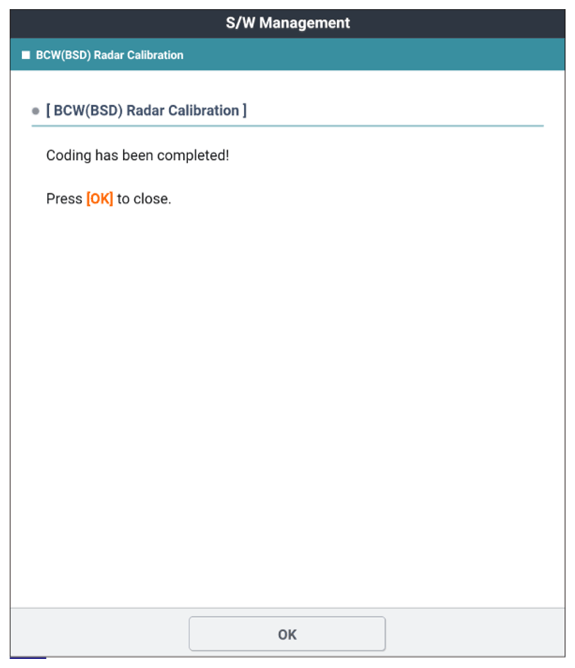

G14967866Courtesy of KIA MOTORS AMERICA, INC.
