Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW (BSD) Radar Calibration" under "Vehicle S/W Management".
 Fig.1 to 4

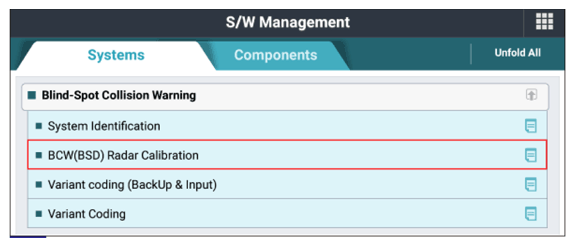

G14967857Courtesy of KIA MOTORS AMERICA, INC.

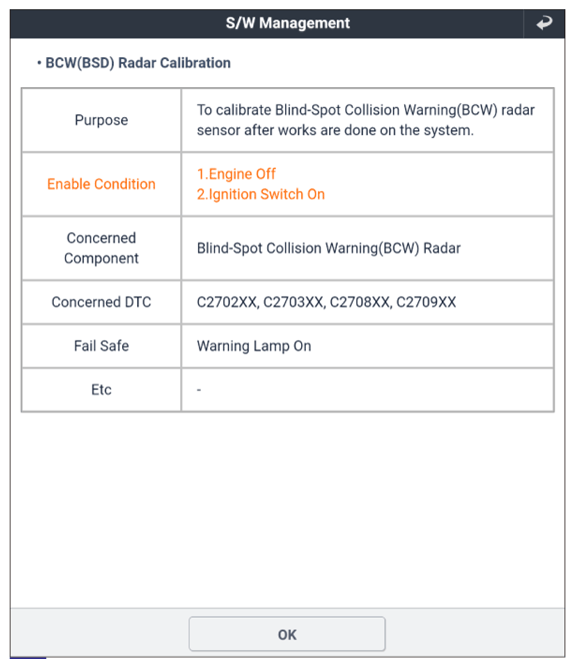

G14967858Courtesy of KIA MOTORS AMERICA, INC.

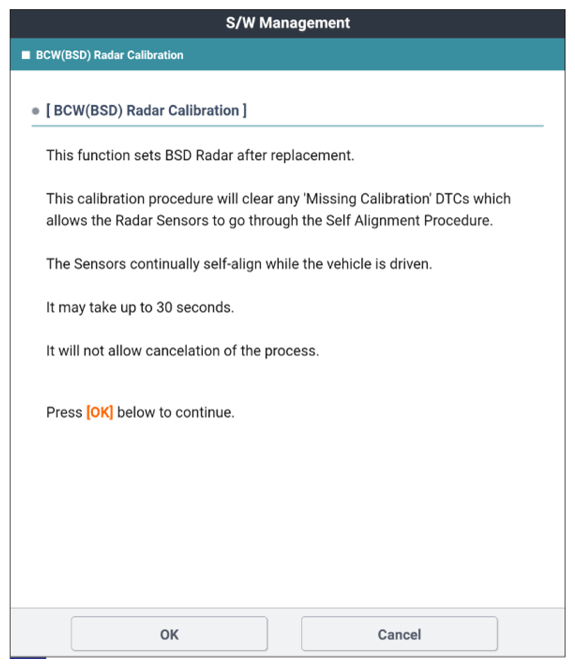

G14967859Courtesy of KIA MOTORS AMERICA, INC.

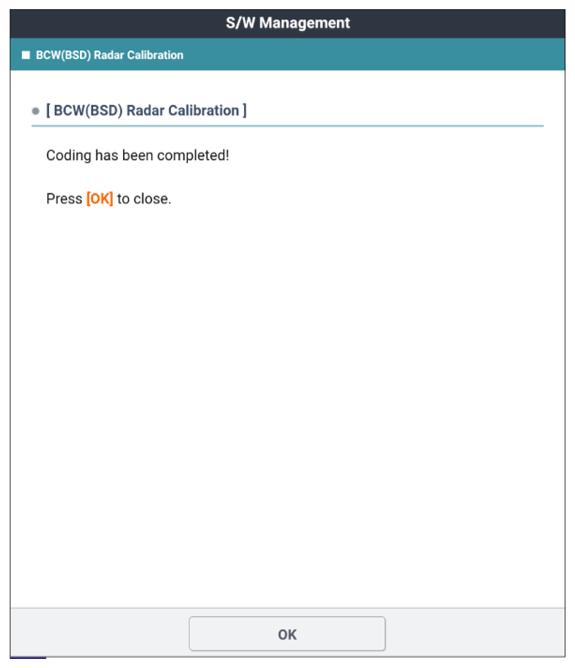

G14967860Courtesy of KIA MOTORS AMERICA, INC.
