Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

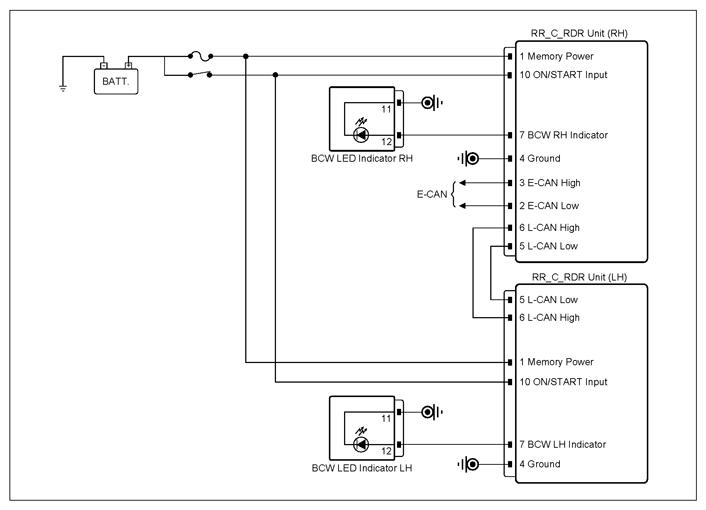

| Local CAN Communication Line Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
RR_C_RDR (RH) connector | 6 (local-CAN high) | Chassis ground | - | Fig.1 |
| RR_C_RDR (RH) connector | 5 (local-CAN low) | Chassis ground | - | ||
|
RR_C_RDR (RH) connector | 6 (local-CAN high) | Chassis ground | - | ∞ (infinity)Ω |
| RR_C_RDR (LH) connector | 6 (local-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| RR_C_RDR (RH) connector | 5 (local-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| RR_C_RDR (LH) connector | 5 (local-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| RR_C_RDR (RH) connector | 6 (local-CAN high) | RR_C_RDR (LH) connector | 6 (local-CAN high) | Approx. below 1Ω | |
| RR_C_RDR (RH) connector | 5 (local-CAN low) | RR_C_RDR (LH) connector | 5 (local-CAN low) | Approx. below 1Ω | |
|
RR_C_RDR (RH) (component side) | 6 (local-CAN high) | RR_C_RDR (RH) (component side) | 5 (local-CAN low) | Approx. 120Ω |
| RR_C_RDR (LH) (component side) | 6 (local-CAN high) | RR_C_RDR (LH) (component side) | 5 (local-CAN low) | Approx. 120Ω | |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors and DTC still occurs, replace the RR_C_RDR and Go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
