Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

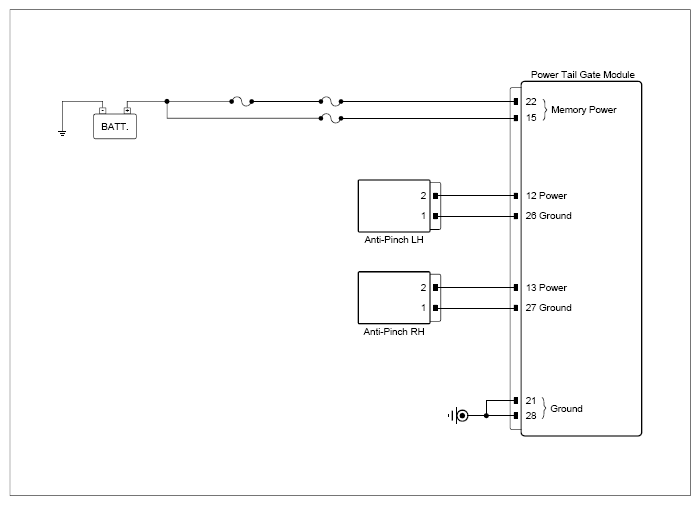

G14967677

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Anti-pinch connector LH	2 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Anti-pinch connector LH	2 (power)	Chassis ground	-	∞ (infinity)Ω
	Anti-pinch connector LH	1 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Perform the relevant diagnostic procedure.
If no problems were found with the circuits or connectors, replace the Anti-pinch connector LH and go to "Verification Of Repair " procedure.

No Good

Repair as necessary, go to "Verification Of Repair " procedure.
