Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Spindle connector LH | 1 (power) | Chassis ground | - | B+ |
|
Spindle connector LH | 4 (ground) | Chassis ground | - | Approx. below 1Ω |
| Spindle connector LH | 6 (sensor1) | PTGM connector | 12 (sensor1) | Approx. below 1Ω | |
| Spindle connector LH | 8 (sensor2) | PTGM connector | 13 (sensor2) | Approx. below 1Ω | |
|

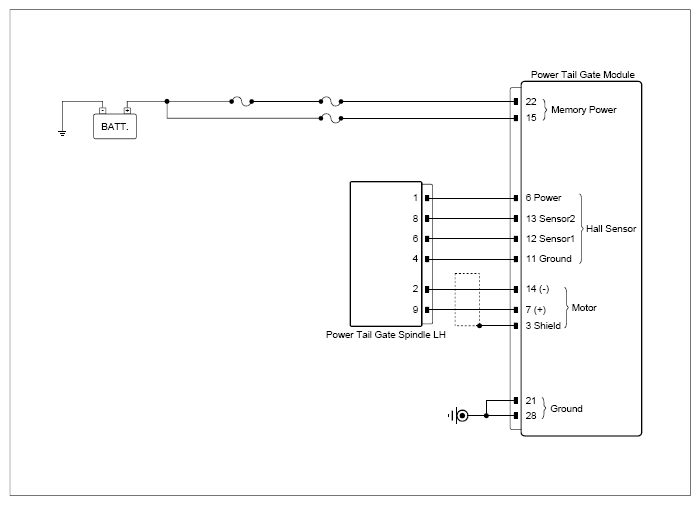

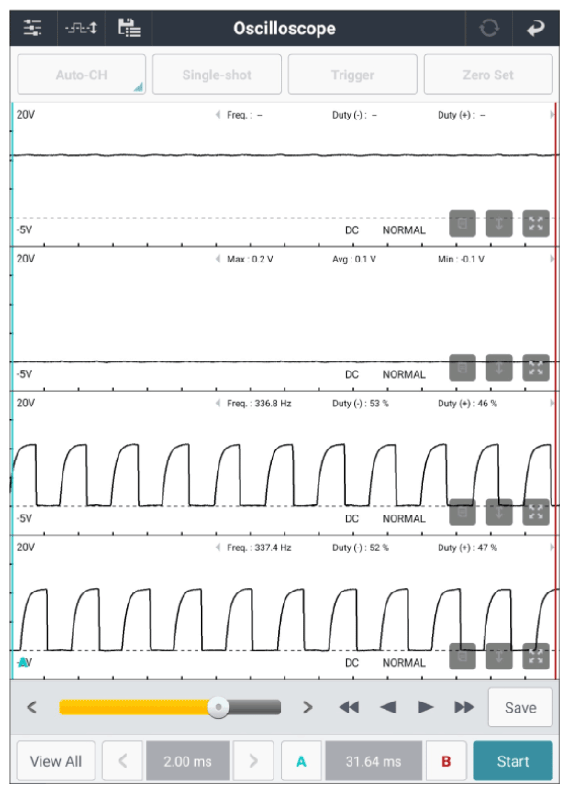

Spindle connector LH | 1 (power) | Spindle connector LH | 4 (ground) | Fig.1 |
| Spindle connector LH | 6 (sensor1) | Spindle connector LH | 8 (sensor2) | ||
Good
- If no problems were found with the circuits or connectors, replace the spindle hall sensor and go to "Verification Of Repair " procedure.
No Good
- Perform the relevant diagnostic procedure.
- If the symptoms persist, replace spindle hall sensor and perform the relevant procedure.
