Monitor DTC Status

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link connector (DLC)". Ignition "ON". Select correct vehicle model, year, and engine type with KDS. Select systems related to CAN. Fault code automatic detection selection.	Fig.1 to 2

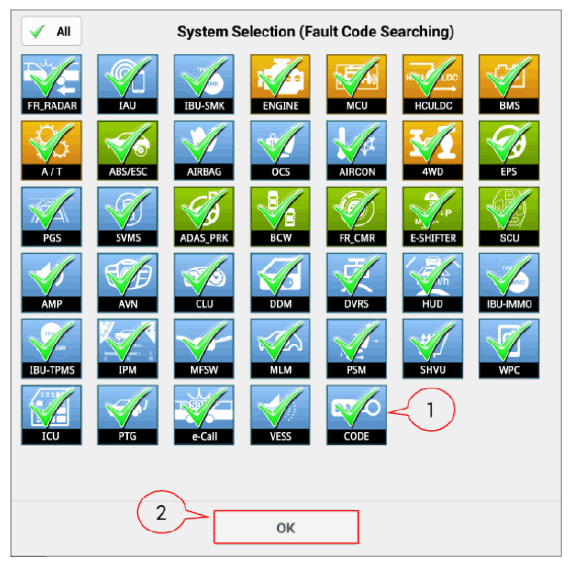

G14967656

Courtesy of KIA MOTORS AMERICA, INC.

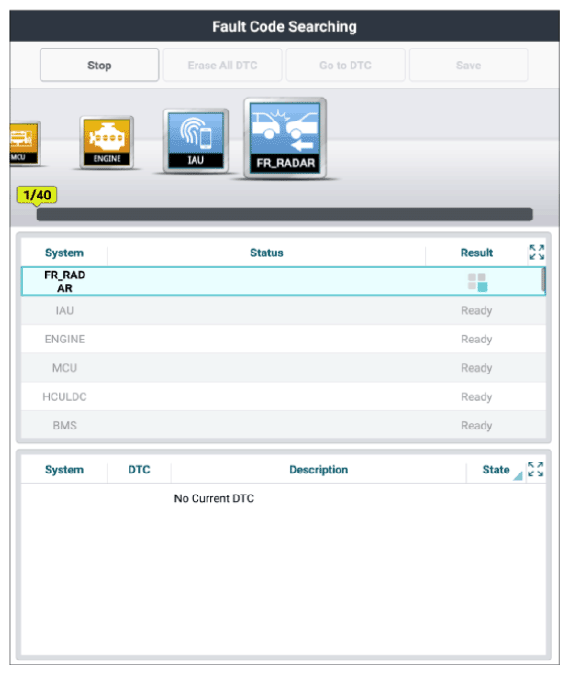

G14967657

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in PTGM's connector or was repaired and PTGM memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, go to "Verification Of Repair " procedure.

No Good

Repair CAN related faults first carry out appropriate diagnostic procedures again.
If the fault persists, perform the wiring check procedure.
