System Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

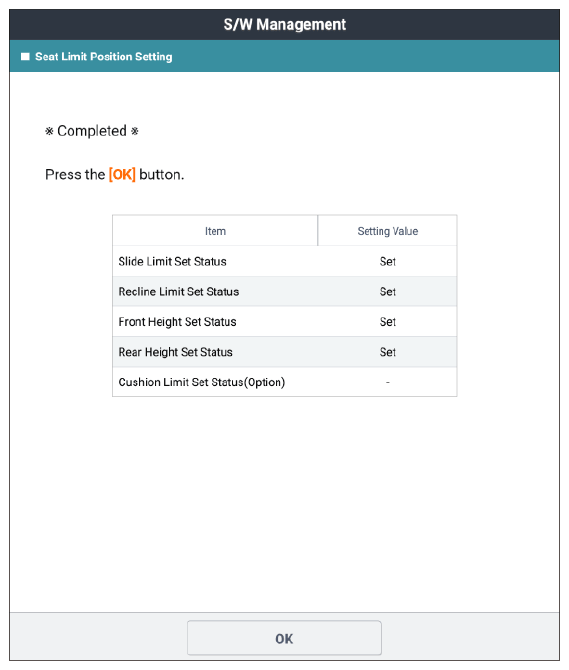

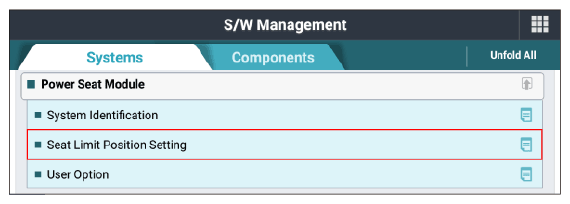

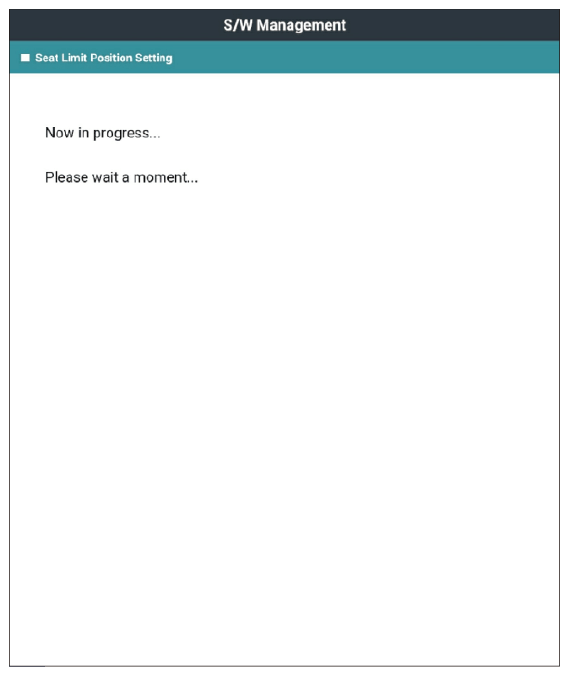

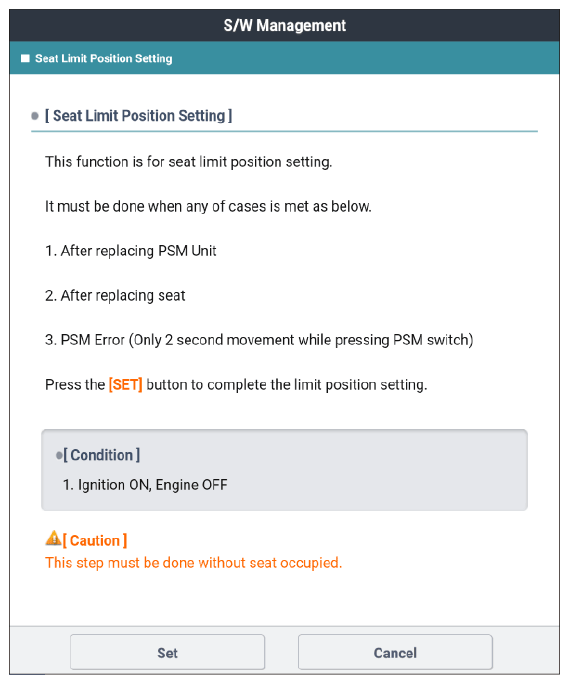

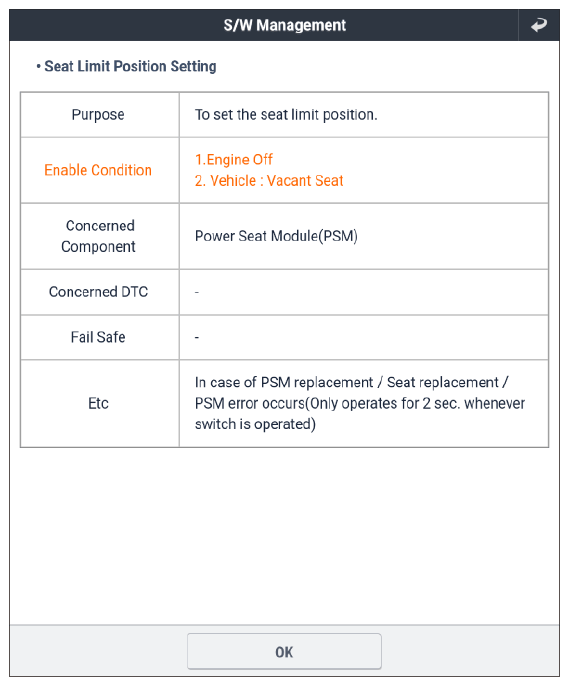

 Fig.1 to 5
G14967650Courtesy of KIA MOTORS AMERICA, INC.
G14967651Courtesy of KIA MOTORS AMERICA, INC.
G14967652Courtesy of KIA MOTORS AMERICA, INC.
G14967653Courtesy of KIA MOTORS AMERICA, INC.
G14967654Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
