Vehicle S/W Management
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON". | 1. Connect the charging connector to charge. 2. Connect KDS to "Data Link Connector (DLC)". 3. Perform "inlet drive function" procedure. |

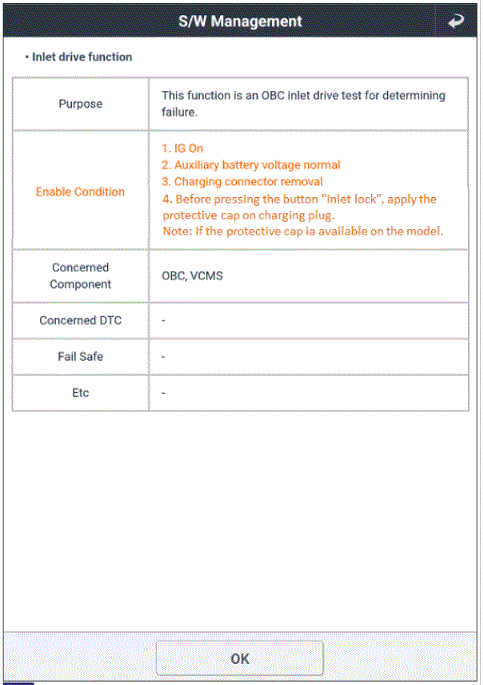

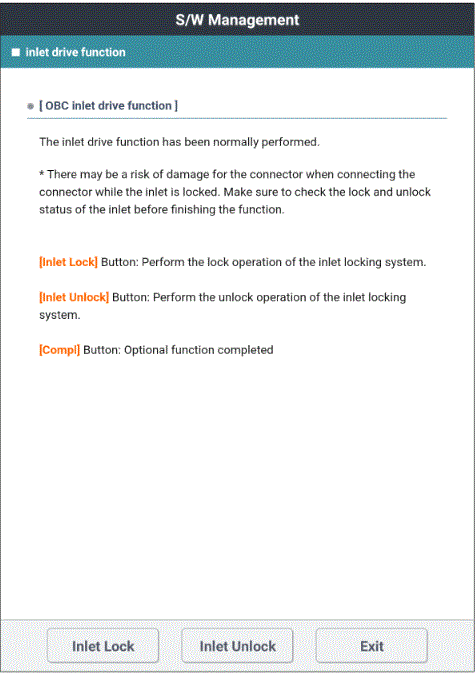

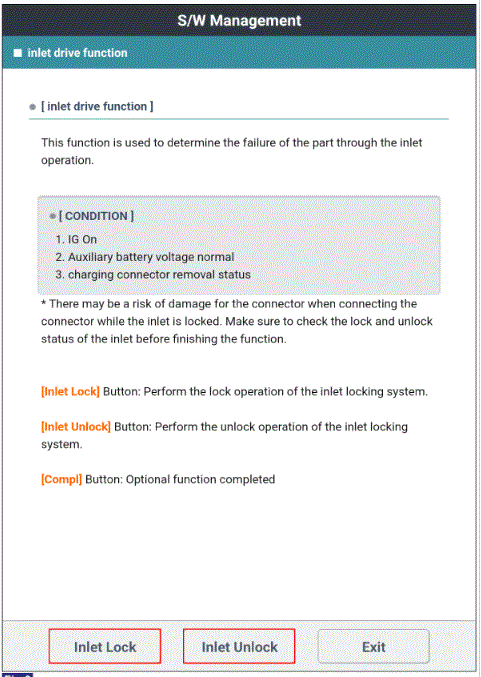

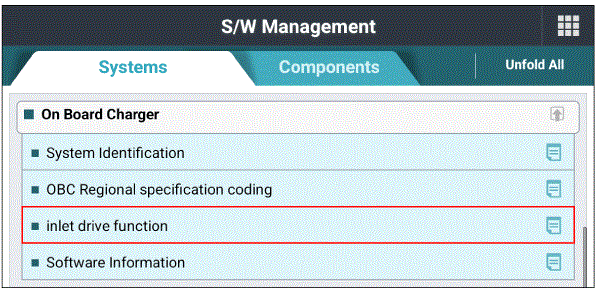

Fig.1 to 4 |
Good
• Fault is intermittent caused by poor contact in the part's and/or connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
• Check the EVSE and AC power-related parts of the charging station.
No Good
• Go to ("Monitor KDS Data ") procedure.
