Body Sensor Reset

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

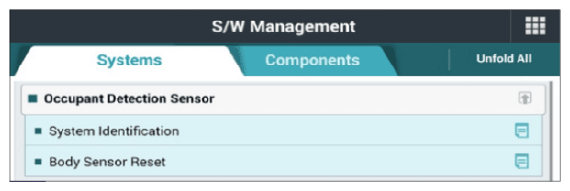

G14962816Courtesy of KIA MOTORS AMERICA, INC.

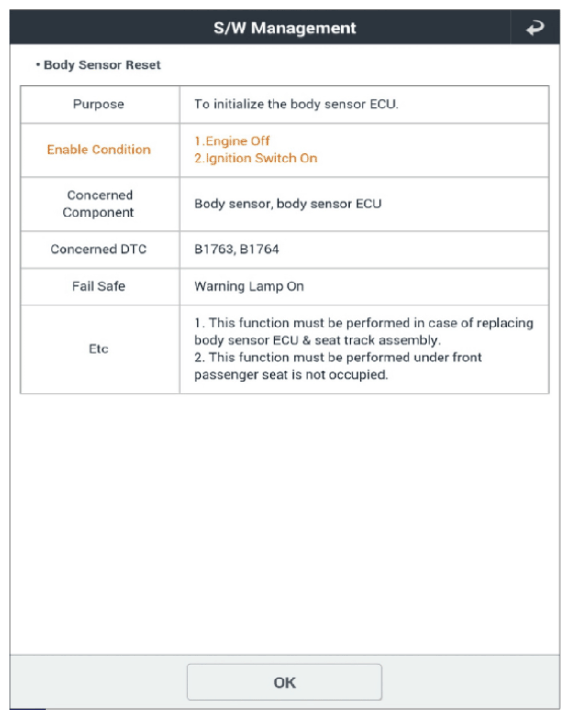

G14962817Courtesy of KIA MOTORS AMERICA, INC.

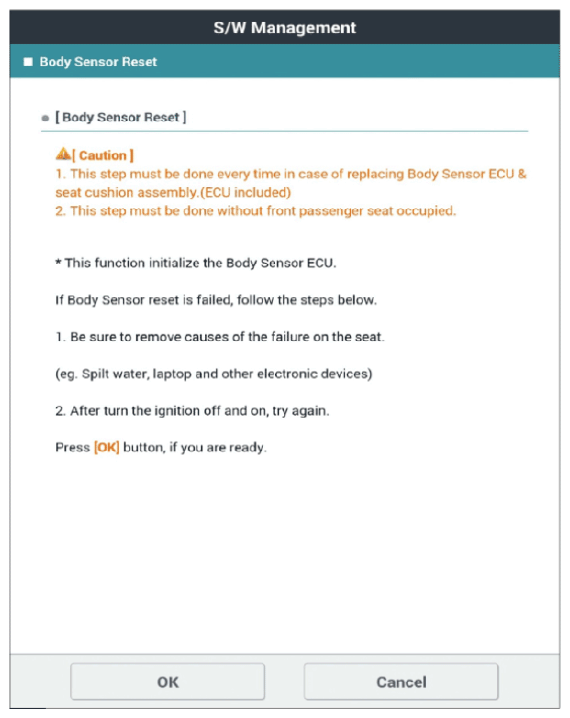

G14962818Courtesy of KIA MOTORS AMERICA, INC.

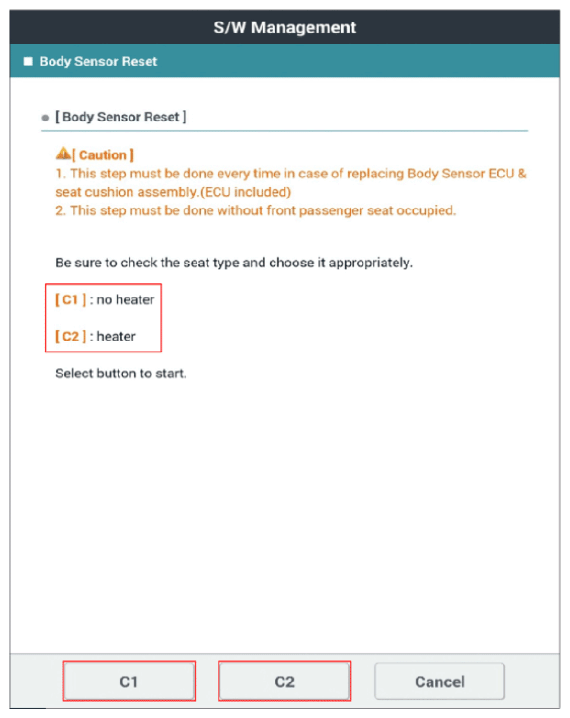

G14962819Courtesy of KIA MOTORS AMERICA, INC.

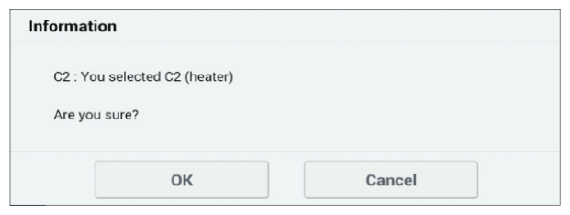

G14962820Courtesy of KIA MOTORS AMERICA, INC.

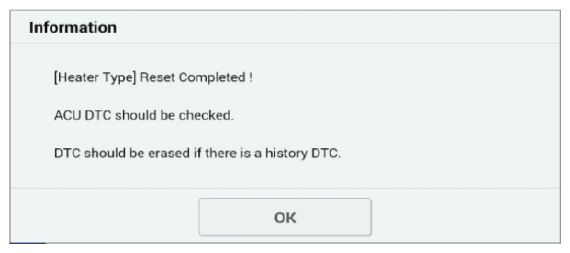

G14962821Courtesy of KIA MOTORS AMERICA, INC.
