Body Sensor Reset

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

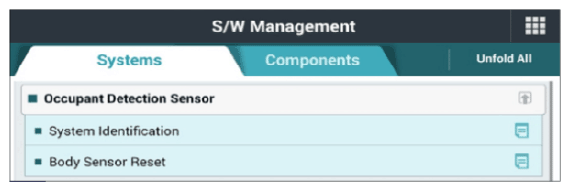

G14962807Courtesy of KIA MOTORS AMERICA, INC.

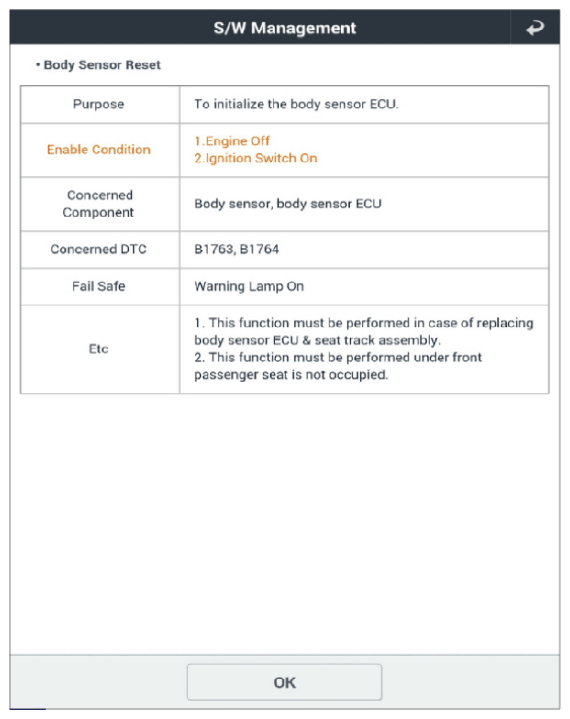

G14962808Courtesy of KIA MOTORS AMERICA, INC.

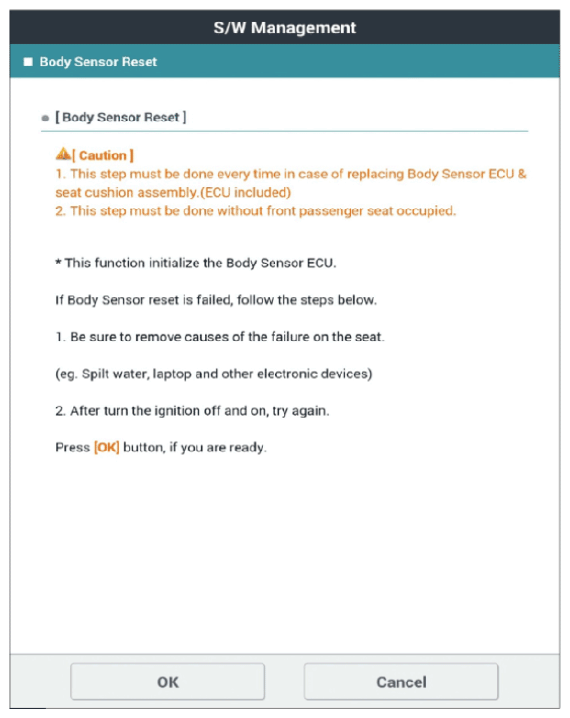

G14962809Courtesy of KIA MOTORS AMERICA, INC.

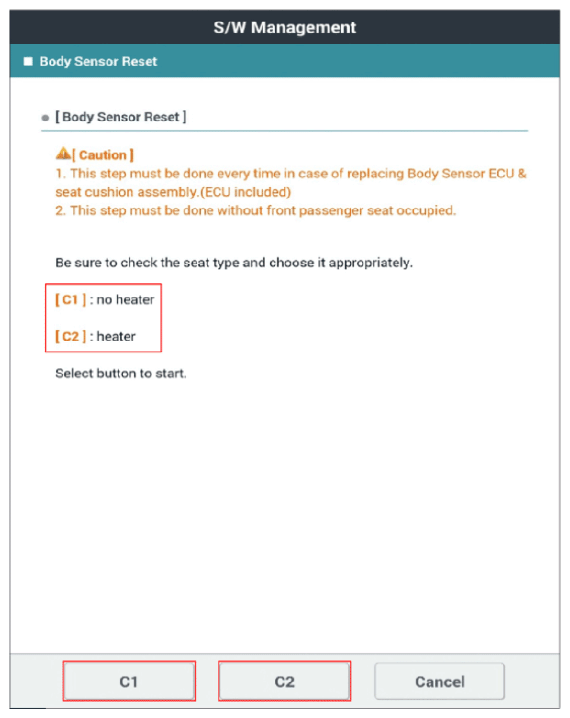

G14962810Courtesy of KIA MOTORS AMERICA, INC.

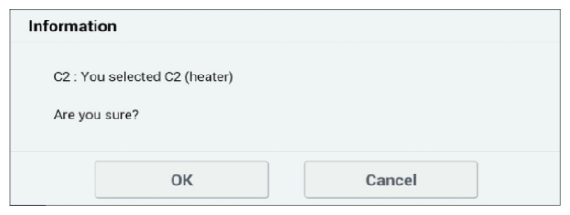

G14962811Courtesy of KIA MOTORS AMERICA, INC.

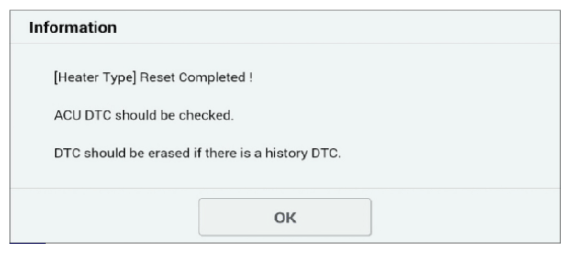

G14962812Courtesy of KIA MOTORS AMERICA, INC.
