Body Sensor Reset

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

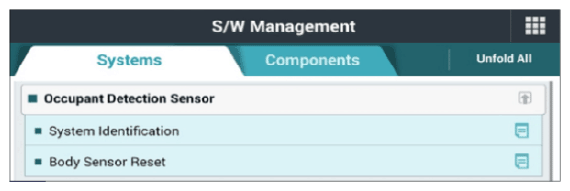

G14962797Courtesy of KIA MOTORS AMERICA, INC.

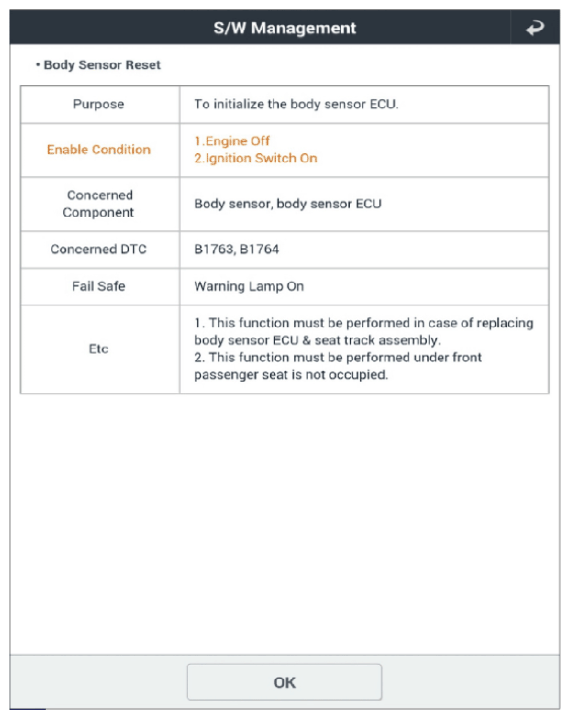

G14962798Courtesy of KIA MOTORS AMERICA, INC.

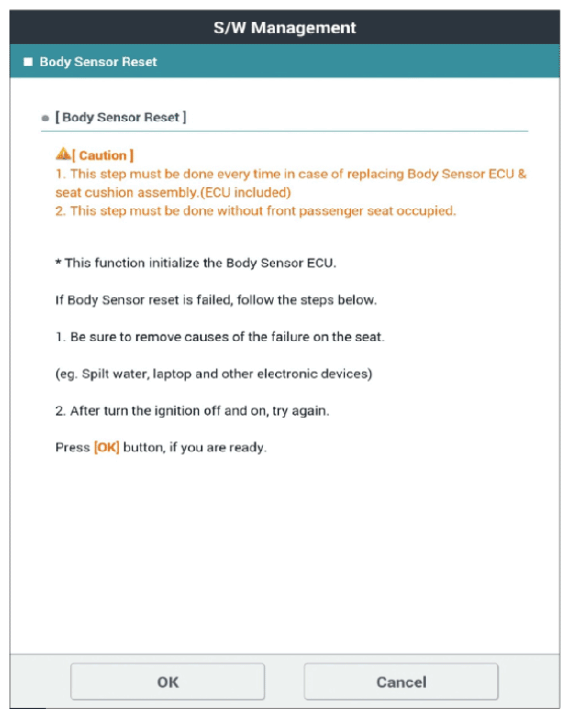

G14962799Courtesy of KIA MOTORS AMERICA, INC.

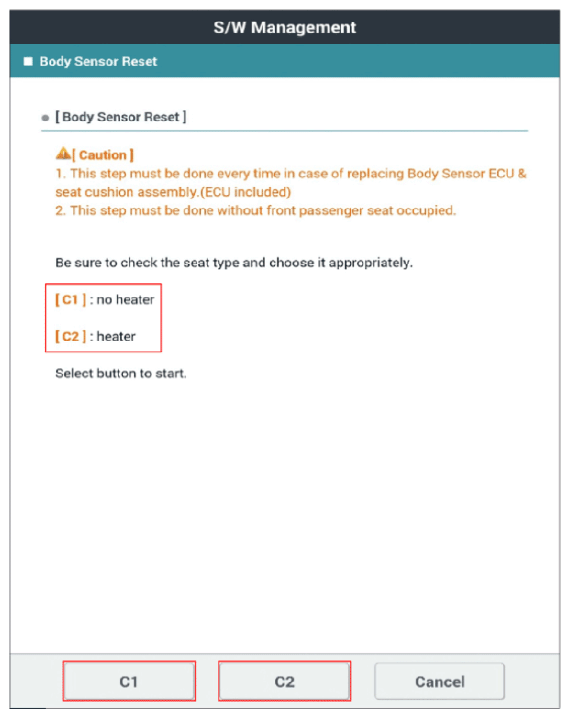

G14962800Courtesy of KIA MOTORS AMERICA, INC.

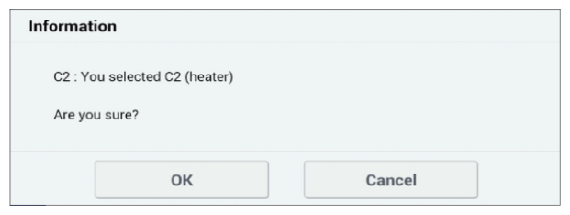

G14962801Courtesy of KIA MOTORS AMERICA, INC.

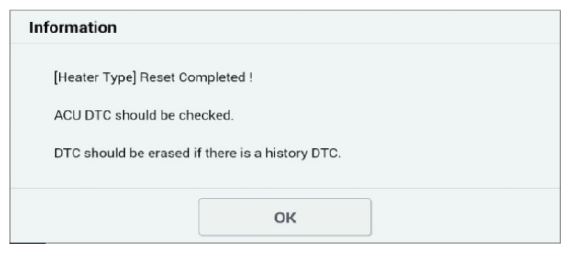

G14962802Courtesy of KIA MOTORS AMERICA, INC.
