Body Sensor Reset

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

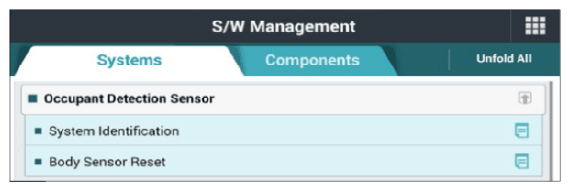

G14962777Courtesy of KIA MOTORS AMERICA, INC.

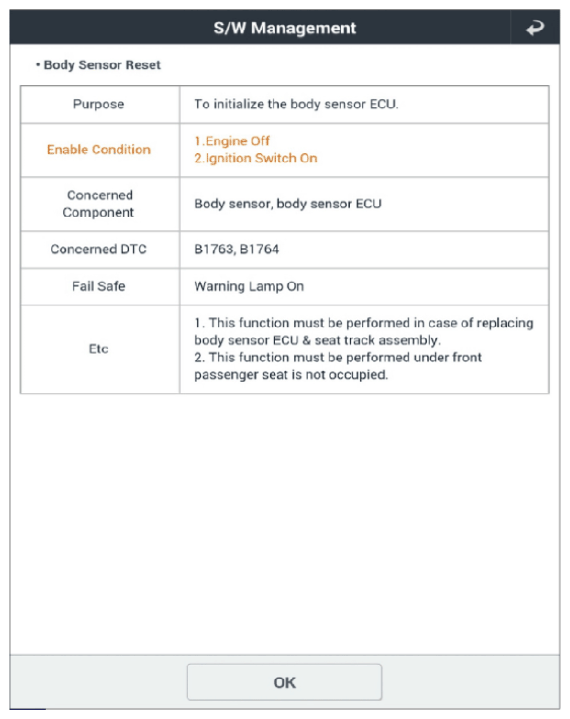

G14962778Courtesy of KIA MOTORS AMERICA, INC.

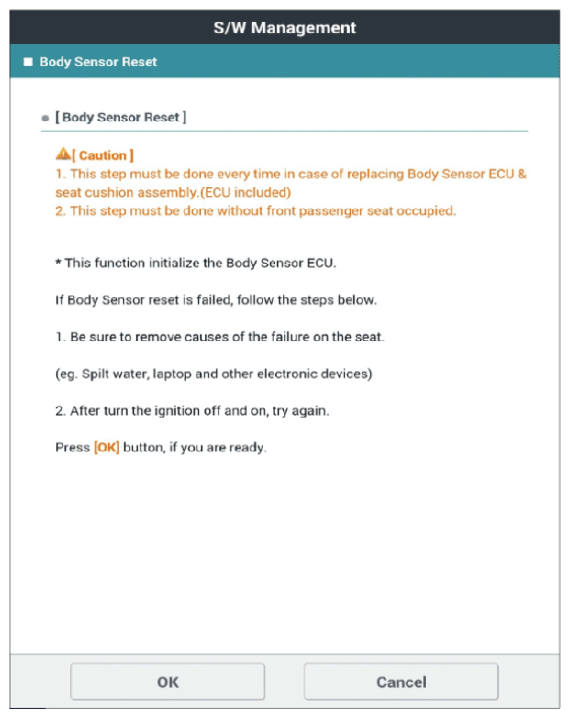

G14962779Courtesy of KIA MOTORS AMERICA, INC.

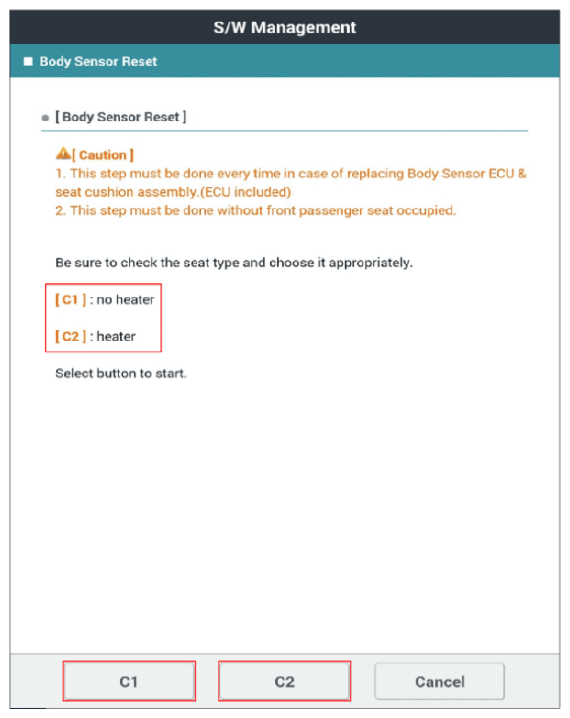

G14962780Courtesy of KIA MOTORS AMERICA, INC.

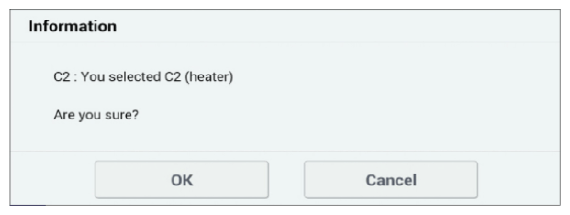

G14962781Courtesy of KIA MOTORS AMERICA, INC.

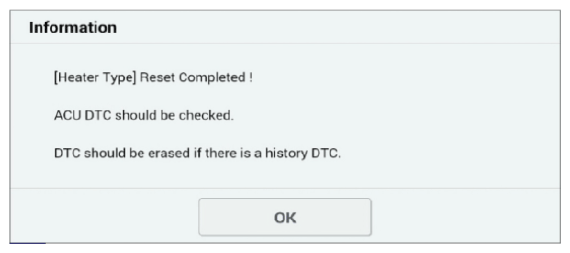

G14962782Courtesy of KIA MOTORS AMERICA, INC.
