Body Sensor Reset

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".

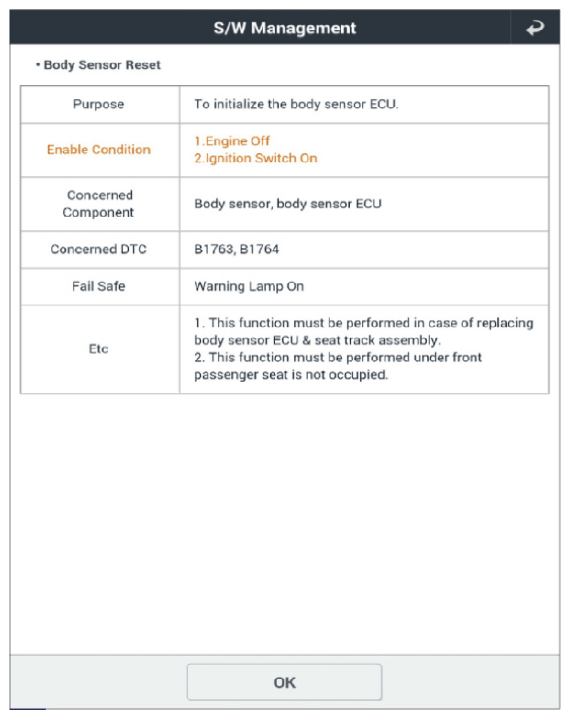

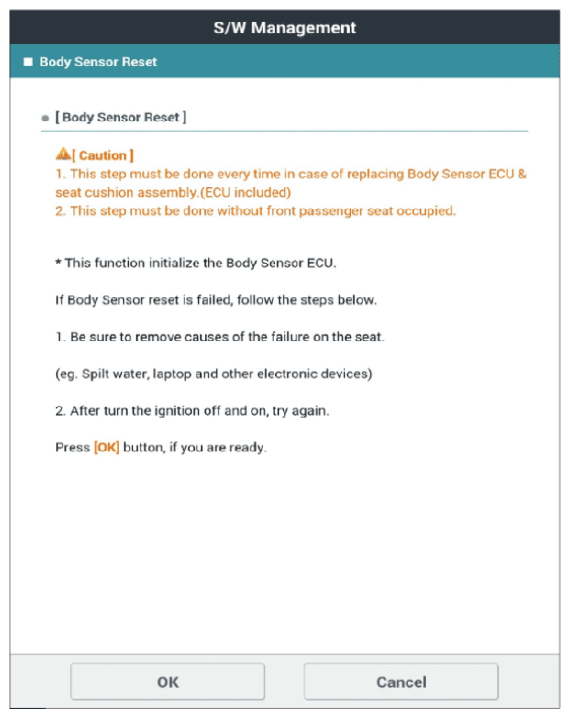

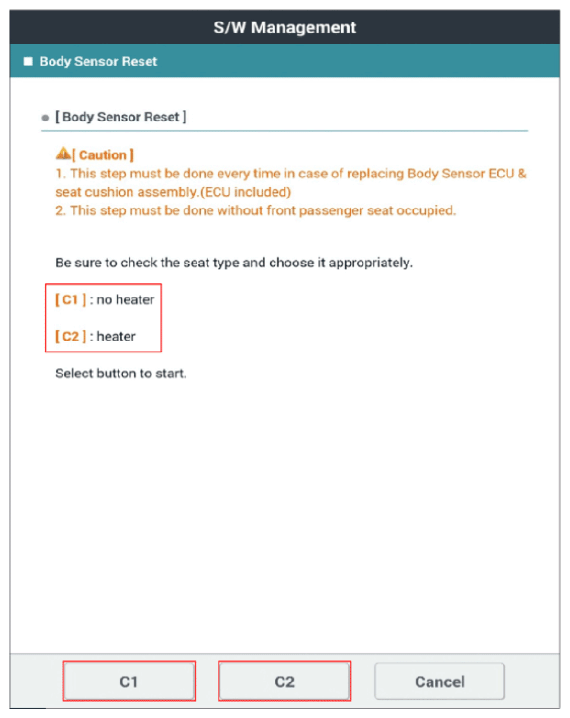

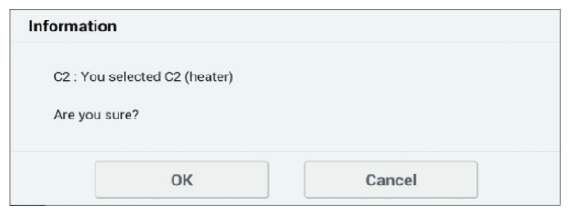

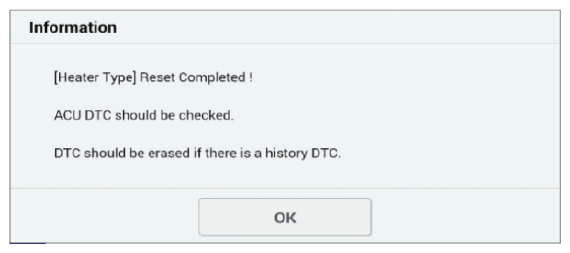

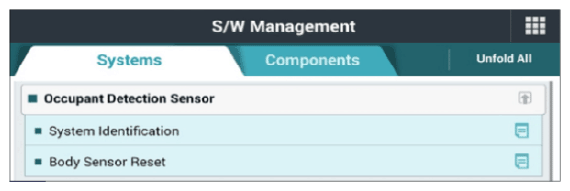

 Fig.1 to 6
G14962767Courtesy of KIA MOTORS AMERICA, INC.
G14962768Courtesy of KIA MOTORS AMERICA, INC.
G14962769Courtesy of KIA MOTORS AMERICA, INC.
G14962770Courtesy of KIA MOTORS AMERICA, INC.
G14962771Courtesy of KIA MOTORS AMERICA, INC.
G14962772Courtesy of KIA MOTORS AMERICA, INC.
