Body Sensor Reset

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

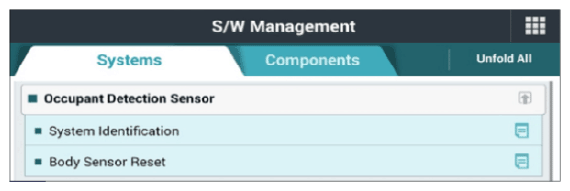

G14962758Courtesy of KIA MOTORS AMERICA, INC.

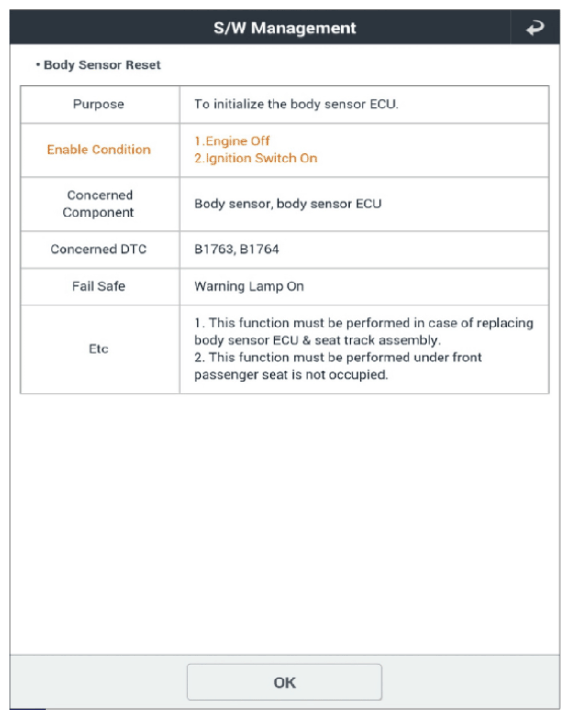

G14962759Courtesy of KIA MOTORS AMERICA, INC.

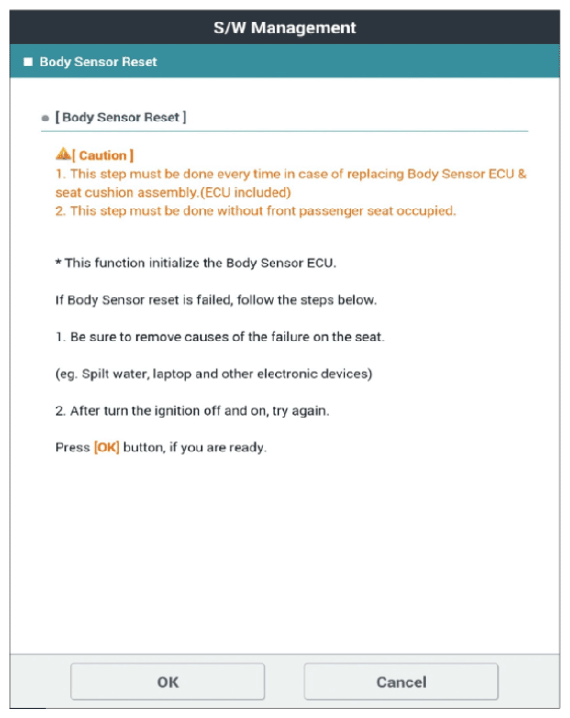

G14962760Courtesy of KIA MOTORS AMERICA, INC.

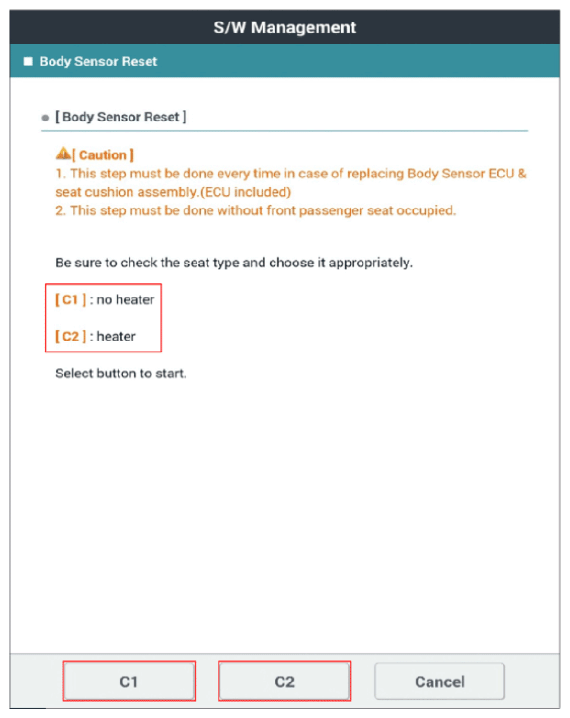

G14962761Courtesy of KIA MOTORS AMERICA, INC.

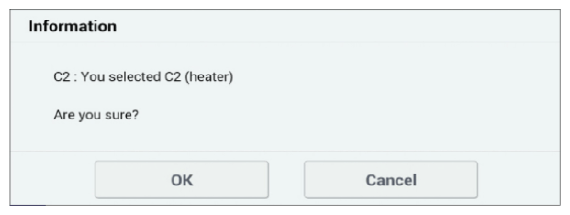

G14962762Courtesy of KIA MOTORS AMERICA, INC.

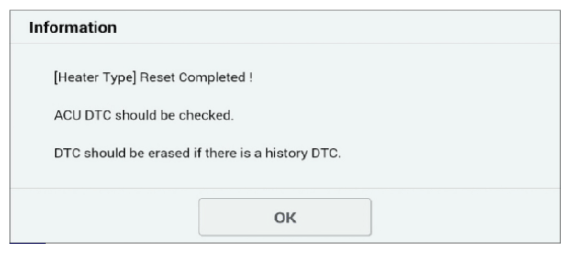

G14962763Courtesy of KIA MOTORS AMERICA, INC.
