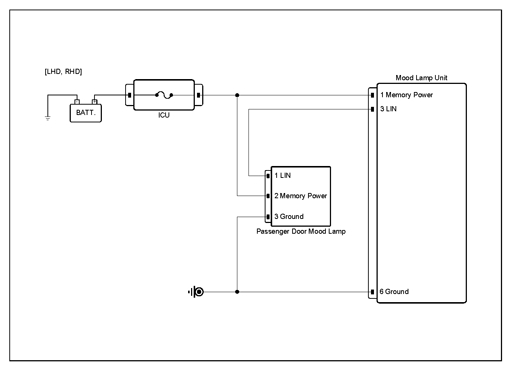

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Passenger door mood lamp connector | 2 (Memory power) | Chassis ground | - | B+ |

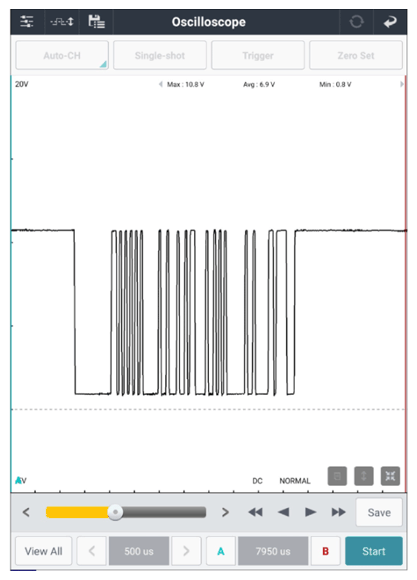

| Passenger door mood lamp connector | 1 (LIN) | Chassis ground | - | Fig.1 | |
|
Passenger door mood lamp connector | 3 (ground) | Chassis ground | - | Approx. below 1Ω |
| Passenger door mood lamp connector | 1 (LIN) | MLM connector | 3 (LIN) | Approx. below 1Ω | |
| Passenger door mood lamp connector | 1 (LIN) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- If no problems were found with the circuits or connectors, replace the passenger door mood lamp and Go to "Verification Of Repair " procedure.
No Good
- Repair as necessary and then Go to "Verification Of Repair " procedure.
