Component Location

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

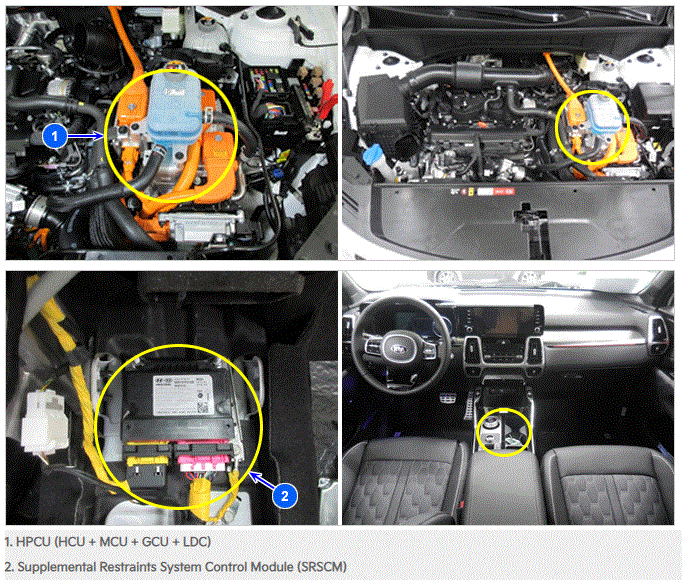

G00671965Courtesy of KIA MOTORS AMERICA, INC.
NOTE: HPCU : Hybrid Power Control Unit
HCU : Hybrid Control Unit
MCU : Motor Control Unit
GCU : Generator Control Unit
LDC : Low DC-DC Converter
