Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
AVN connector | 10, 11, 22, 33 (power) | Chassis ground | - | B+ |
| HPCU connector | 4, 5, 6, 49 (power) | Chassis ground | - | B+ | |
|
AVN connector | 12, 13 (ground) | Chassis ground | - | Approx. below 1Ω |
| HPCU connector | 1, 2, 3 (ground) | Chassis ground | - | Approx. below 1Ω | |
| AVN connector | 7 (M-CAN high) | ICU connector | 26 (M-CAN high) | Approx. below 1Ω | |
| AVN connector | 20 (M-CAN low) | ICU connector | 10 (M-CAN low) | Approx. below 1Ω | |
| ICU connector | 29 (G-CAN high) | HPCU connector | 90 (G-CAN high) | Approx. below 1Ω | |
| ICU connector | 30 (G-CAN low) | HPCU connector | 91 (G-CAN low) | Approx. below 1Ω | |
| AVN connector | 7 (M-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| AVN connector | 20 (M-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| BMU (component side) | 20 (G-CAN high) | BMU (component side) | 19 (G-CAN low) | Approx. 120Ω | |
| ICU (component side) | 29 (G-CAN high) | ICU (component side) | 30 (G-CAN low) | Approx. 120Ω | |
| HPCU connector | 90 (G-CAN high) | HPCU connector | 91 (G-CAN low) | Approx. 60Ω | |
|

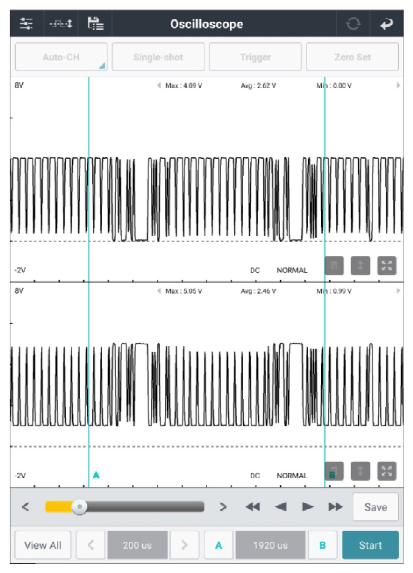

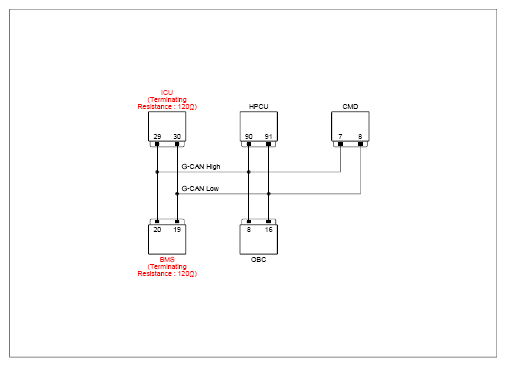

ICU connector | 29 (G-CAN high) | Chassis ground | - | Fig.1 |
| ICU connector | 30 (G-CAN low) | Chassis ground | - | ||

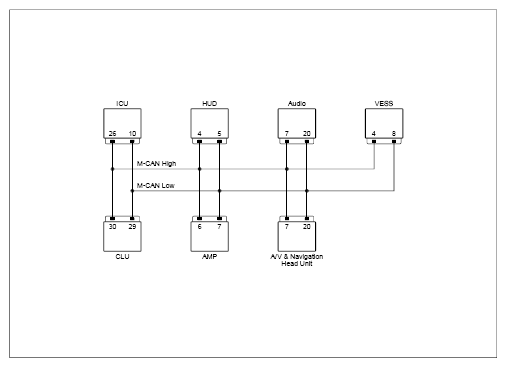

| AVN connector | 7 (M-CAN high) | Chassis ground | - | Fig.2 | |
| AVN connector | 20 (M-CAN low) | Chassis ground | - | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "Verification Of Repair " procedure.
- Check module circuit for open circuit or short circuit after repair, go to "Verification Of Repair ".
