Component Location

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

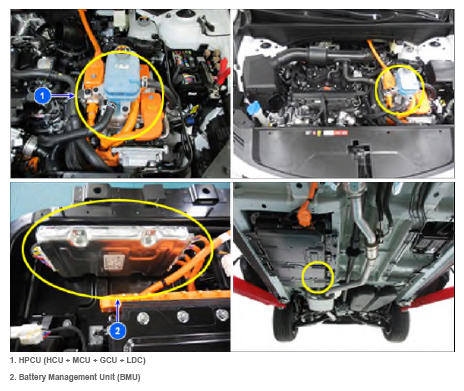

G14961973Courtesy of KIA MOTORS AMERICA, INC.
NOTE: HPCU: Hybrid Power Control Unit
HCU: Hybrid Control Unit
MCU: Motor Control Unit
GCU: Generator Control Unit
LDC: Low DC-DC Converter
