Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

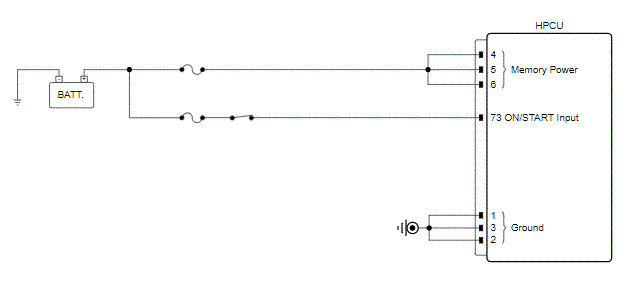

G00671963Courtesy of KIA MOTORS AMERICA, INC.

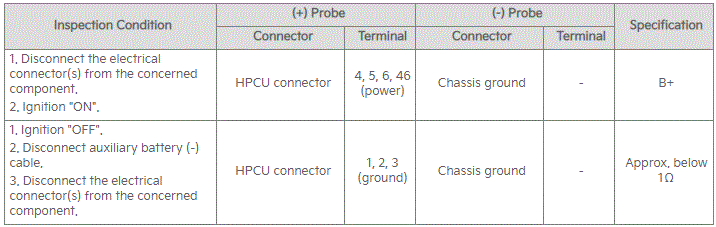

G00671964Courtesy of KIA MOTORS AMERICA, INC.

Good

• Replace the HPCU and then go to the "System Inspection " procedure and then go to "Verification of Repair".

No Good

• Repair open or short in circuit and then go to ("Verification Of Repair ")procedure.
