Signal Waveform And Data

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Ignition "ON"
  3. In KDS, select the vehicle model, model year, engine type.

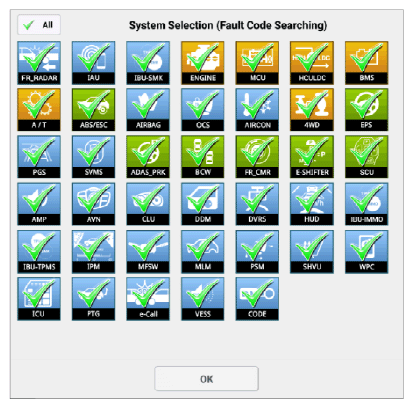

  4. Select CAN-related all systems. (Fig.1)

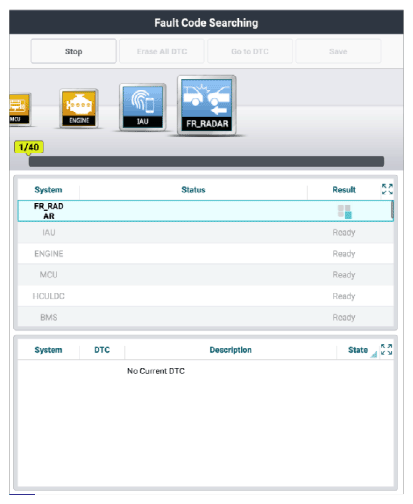

  5. Select "Fault code searching". (Fig.2)
 Fig.1 to 2
G14961953Courtesy of KIA MOTORS AMERICA, INC.
G14961954Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
