Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

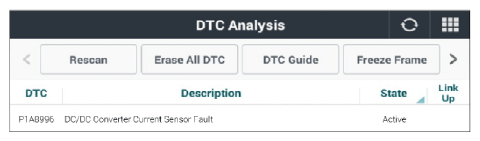

Fig.1 |
Active Fault
- Replace to normal LDC (HPCU) as necessary and then go to "SYSTEM INSPECTION " procedure.
- After performing "System Inspection" procedure, go to "Verification Of Repair " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in the sensor's and/or control module's connector or was repaired and control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "Verification Of Repair " procedure.
CAUTION:
* After replacing the LDC (HPCU), it is necessary to operate the "Vehicle S/W Management"
