Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

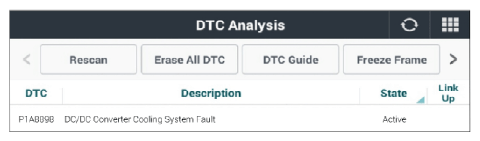

Fig.1 |
Active Fault
- Perform applicable repair procedure for "Information Code", re-do this troubleshooting guide steps.
- In case that only the LDC temperature is high, after diagnosing the MCU system, check DTCs related LDC temperature sensors and sensor operation. And, if the MCU temperature is high together, check whether operation of cooling system is good or not.
- This may be a history of secondary failures due to incomplete motor cooling due to past PE component cooling water shortages or EWP failures.
- Check the water pump and coolant and perform the "Verification Of Repair " procedure.
- Repair or replace as necessary and then go to "SYSTEM INSPECTION " procedure.
- After performing "System Inspection" procedure, go to "Verification Of Repair " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in the sensor's and/or control module's connector or was repaired and control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "Verification Of Repair " procedure.
CAUTION:
* After replacing the LDC (HPCU), it is necessary to operate the "Vehicle S/W Management"
