Vehicle S/W Management
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
- HEV Not ready.
|
- Connect KDS to "Data Link Connector (DLC)".
- Perform "Vehicle S/W Management" of concerned component with KDS.
|
Fig.1 to 5 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

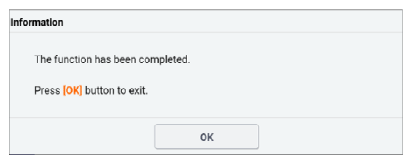

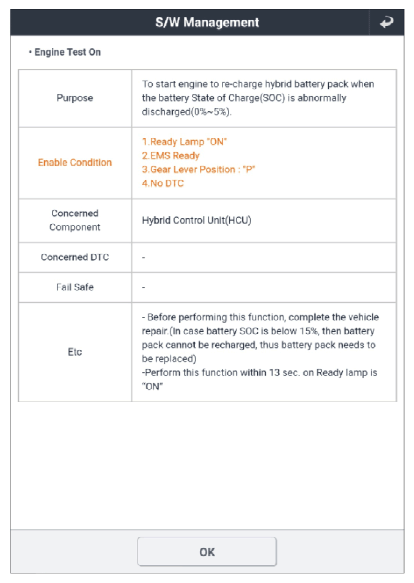

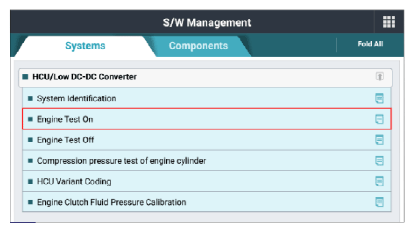

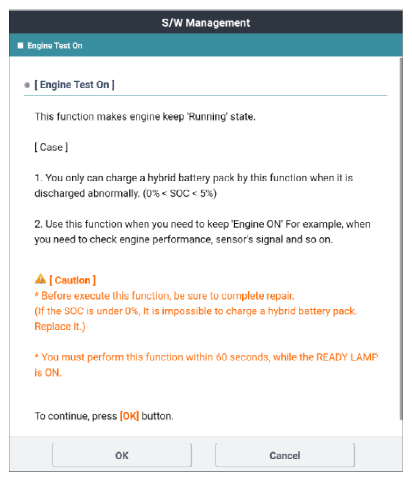

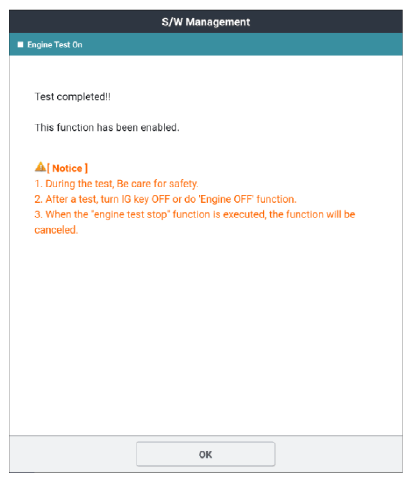

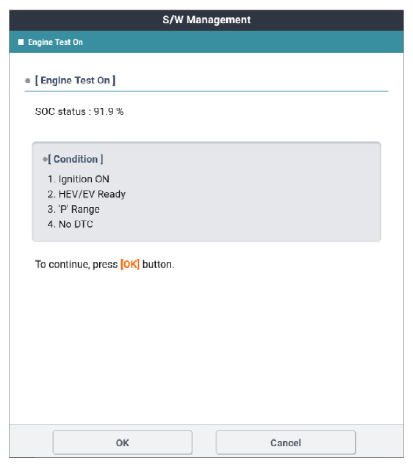

Fig.1 to 5) "Engine Test On" procedure
| "Vehicle S/W management" - "Engine Clutch Fluid Pressure Calibration" |
| Inspection Condition |
Inspection Procedure |
Reference |
- Motor/HSG resolver calibration completed.
- Shift lever: "P".
- HEV ready.
- No DTC present.
|
- Connect KDS to "Data Link Connector (DLC)".
- Perform "Vehicle S/W Management" of concerned component with KDS.
|
Fig.1 to 5 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

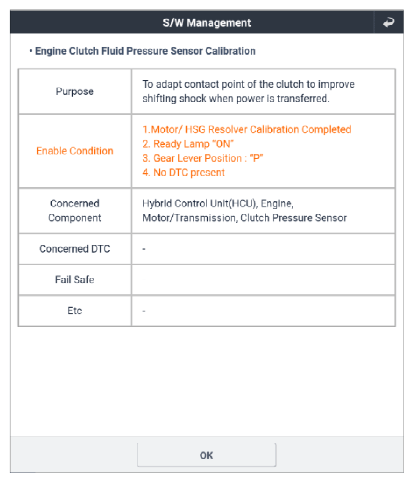

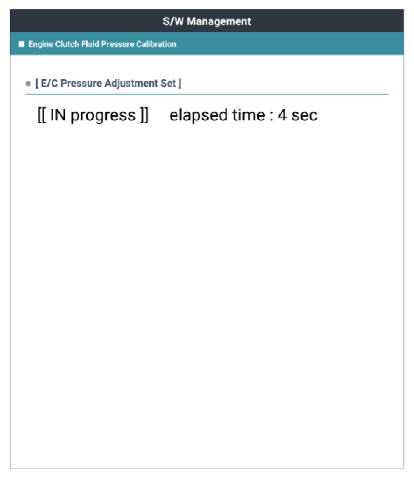

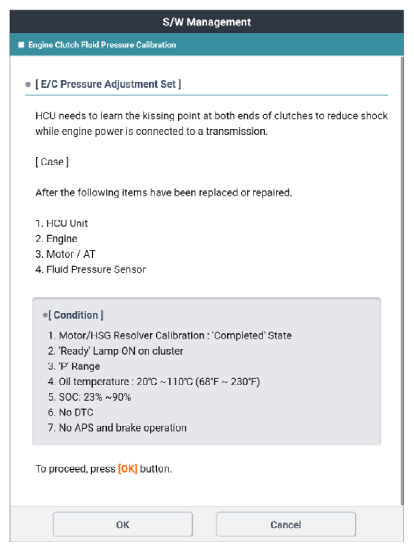

Fig.1 to 5) "Engine Clutch Fluid Pressure Calibration" procedure
| "Vehicle S/W management" - "Motor Control System" - "Motor/HSG Resolver Calibration" |
| Inspection Condition |
Inspection Procedure |
Reference |
- Shift lever: "P".
- HEV ready.
- SOC: 30 to 80%.
- No DTC.
|
- Connect KDS to "Data Link Connector (DLC)".
- Perform "Vehicle S/W Management" of concerned component with KDS.
|
Fig.1 to 5 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

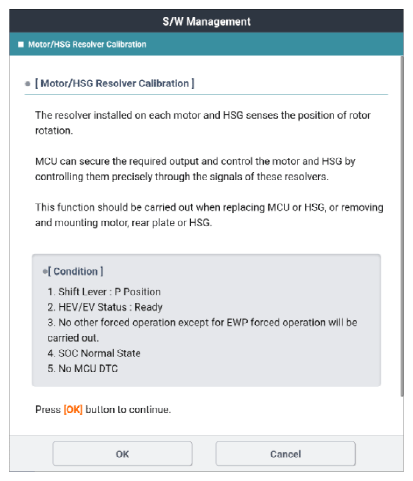

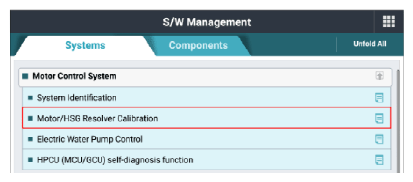

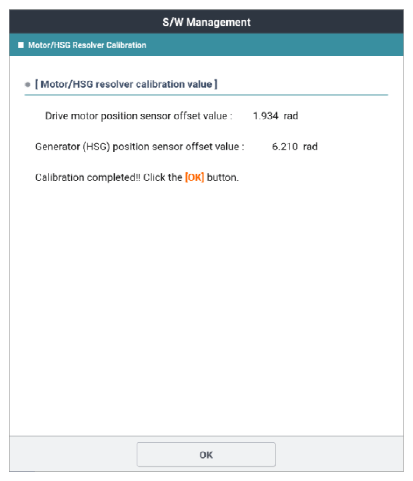

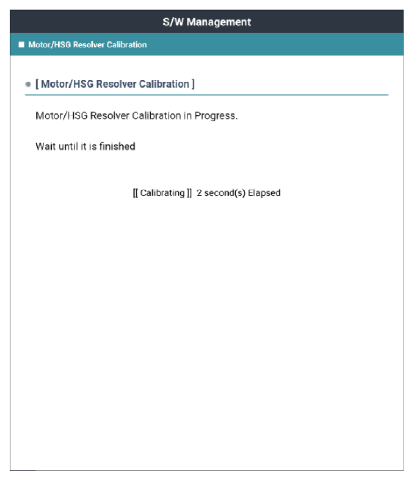

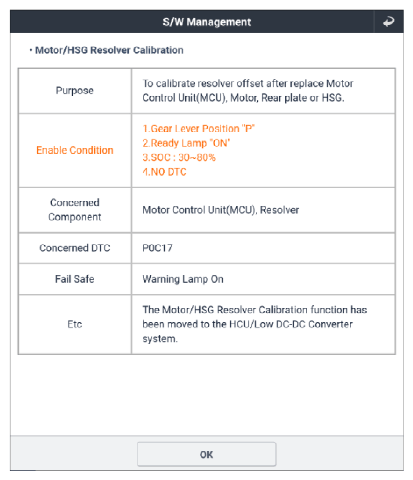

Fig.1 to 5) "Motor/HSG Resolver Calibration" procedure
