Monitor KDS Data

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

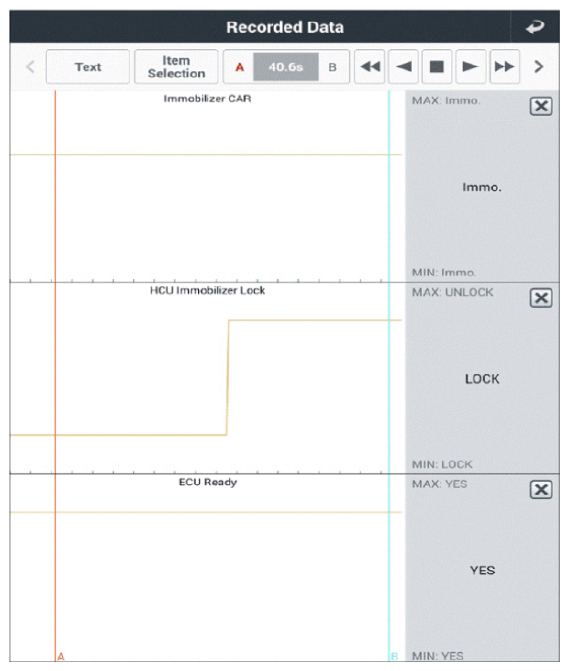

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS. If the "HCU Immobilizer Lock" value is unlock, check below items. Check whether Key registration is OK, immobilizer system is functioning well, CAN DTC is set or ECM has no problem.	Fig.1

G14961774

Courtesy of KIA MOTORS AMERICA, INC.

Good

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "Verification Of Repair " procedure.

No Good

Repair or replace as necessary and go to "Verification Of Repair " procedure.
