Monitor KDS Data
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

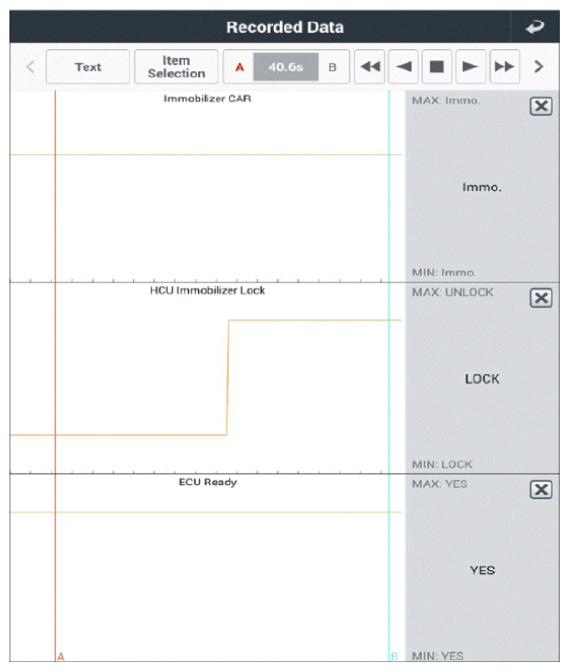

Fig.1 |
Good
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "Verification Of Repair " procedure.
No Good
- Replace HCU equipped with Immobilizer and then, check system is functioning properly.
- Replace ECM equipped with Immobilizer and then, check system is functioning properly.
- Repair or replace as necessary and go to "Verification Of Repair " procedure.
* After replacing ECM and HCU with applied IMMO, "Write VIN" must be performed using KDS.
