Vehicle S/W Management
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

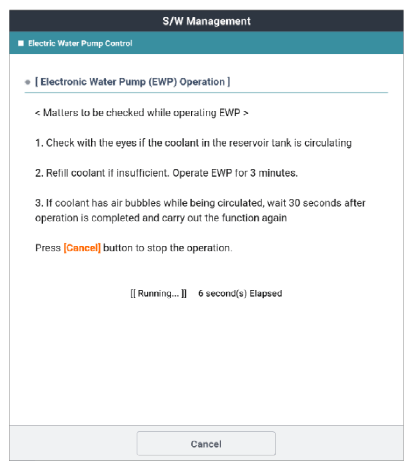

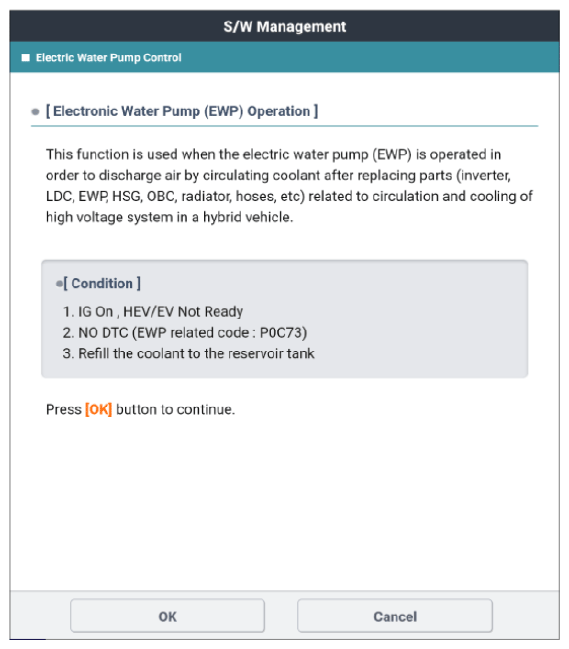

| "Vehicle S/W management" - "Motor Control System" - "Electric Water Pump Control" |
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to "Data Link Connector (DLC)".
- After selecting the MCU system, perform "Vehicle S/W Management" of concerned component with KDS.
|
Fig.1 to 5 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

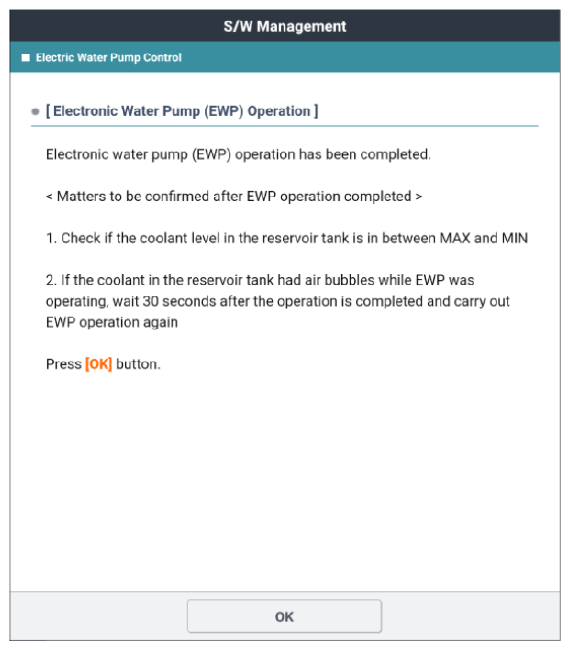

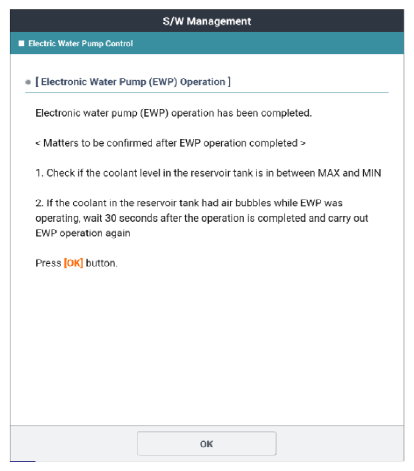

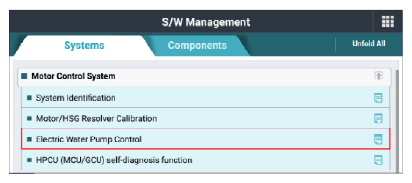

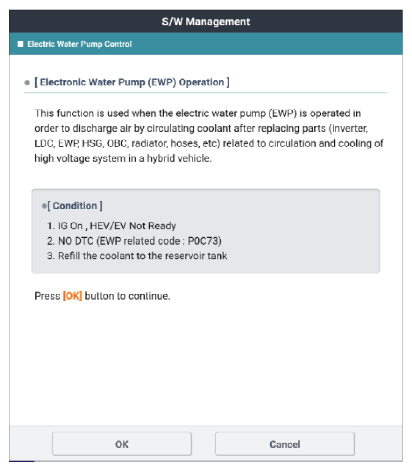

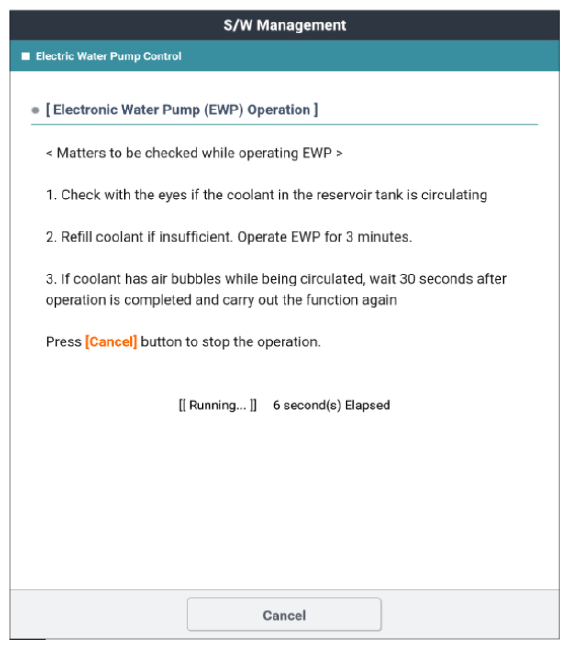

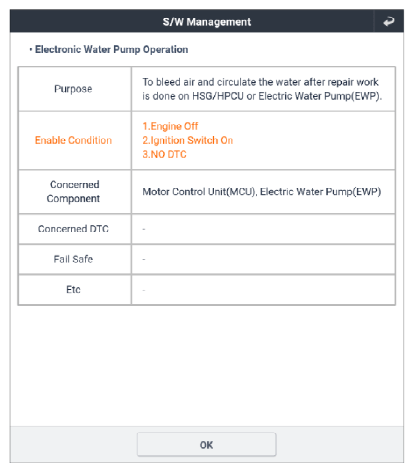

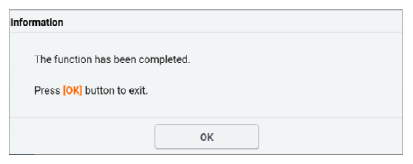

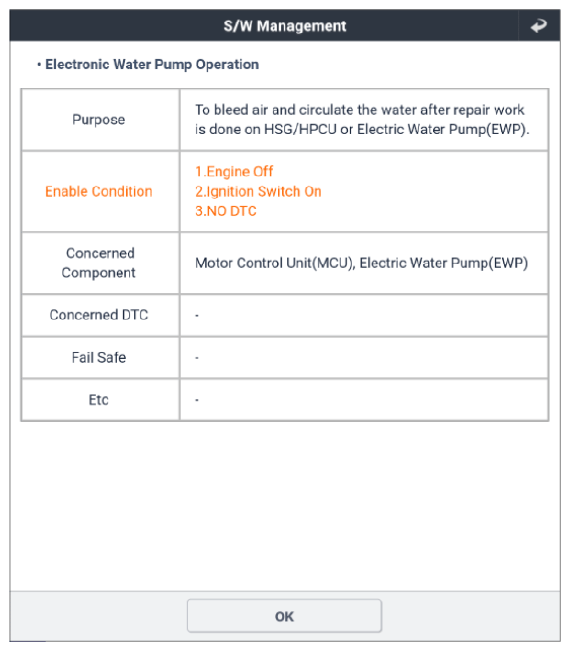

Fig.1 to 5) "Electric Water Pump Control" procedure
* Select the MCU system.

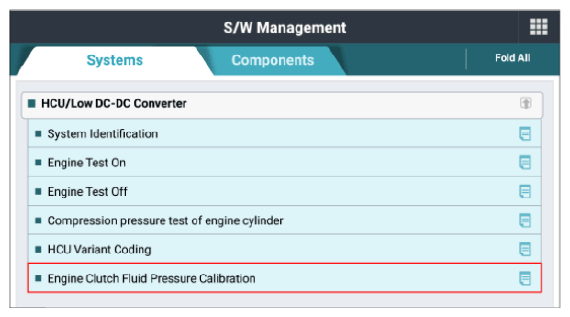

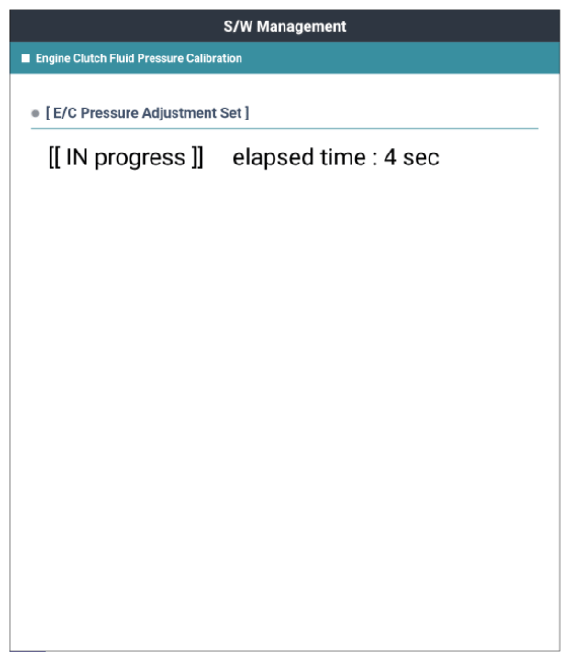

| "Vehicle S/W management" - "Engine Clutch Fluid Pressure Calibration" |
| Inspection Condition |
Inspection Procedure |
Reference |
- Motor/HSG resolver calibration completed.
- Shift lever: "P".
- HEV ready.
- No DTC present.
|
- Connect KDS to "Data Link Connector (DLC)".
- Perform "Vehicle S/W Management" of concerned component with KDS.
|
Fig.1 to 5 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

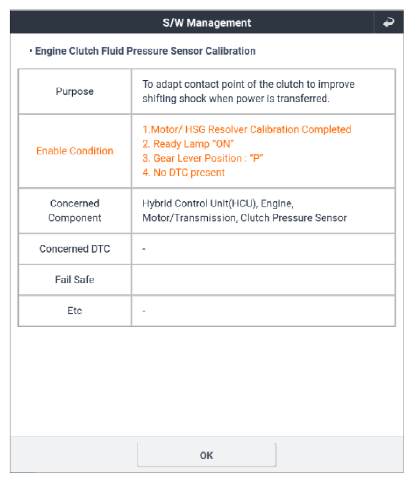

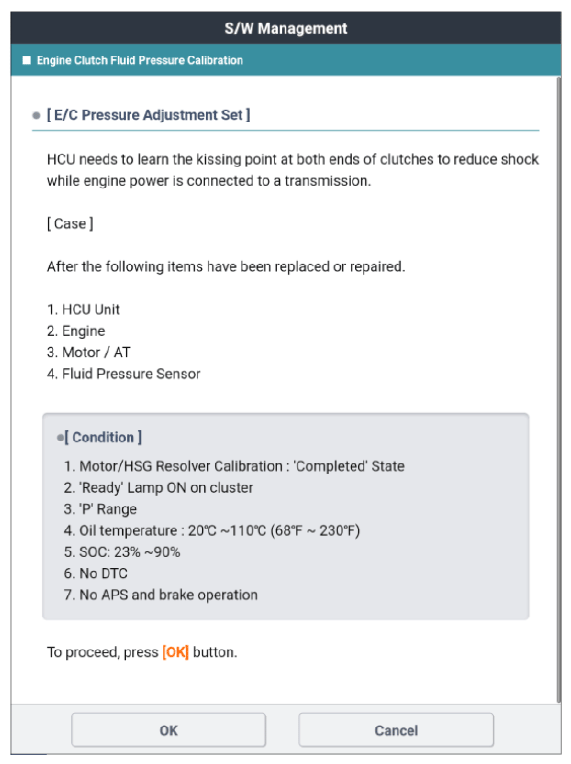

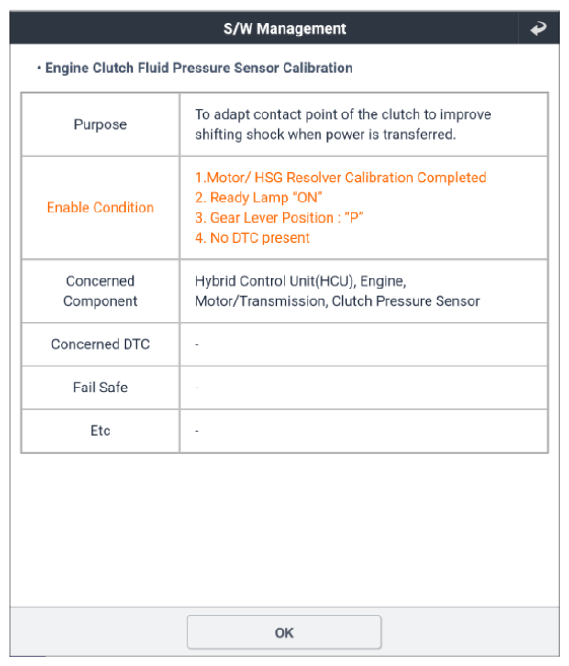

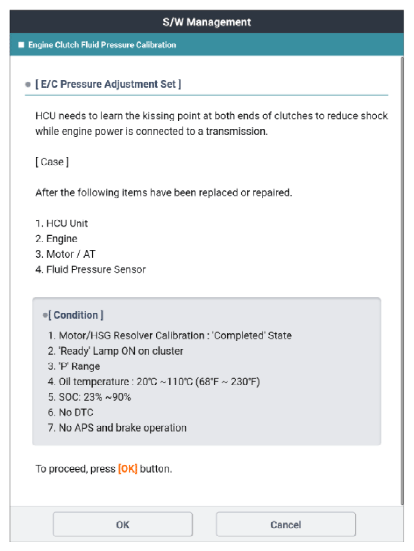

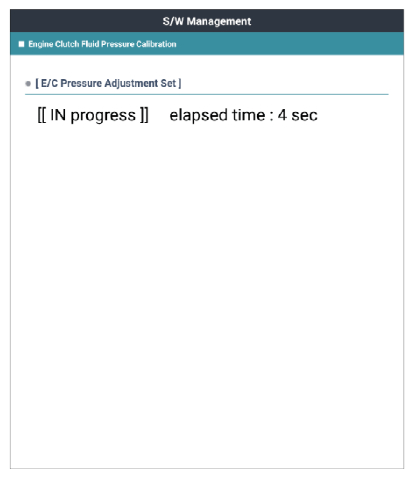

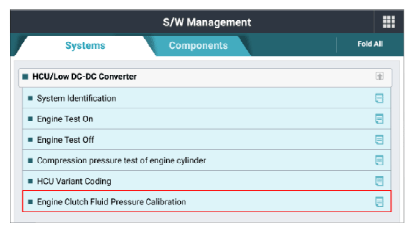

Fig.1 to 5) "Engine Clutch Fluid Pressure Calibration" procedure

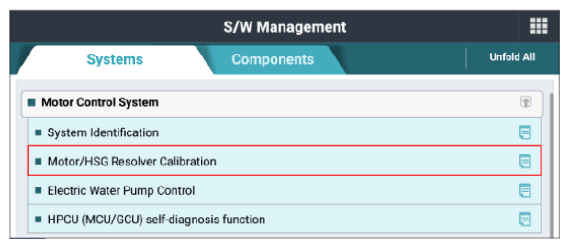

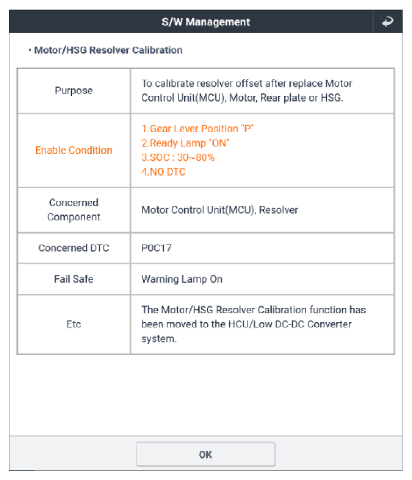

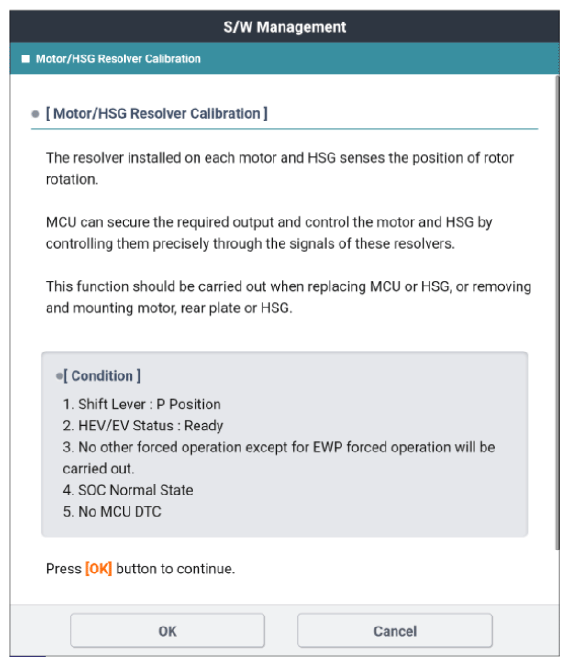

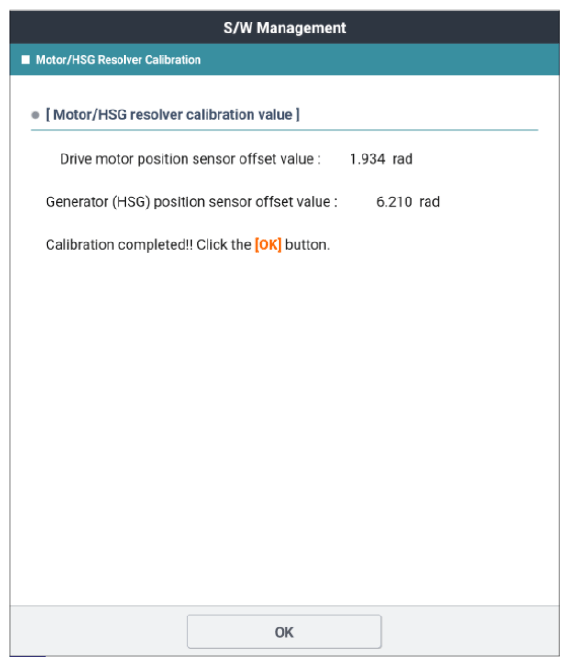

| "Vehicle S/W management" - "Motor Control System" - "Motor/HSG Resolver Calibration" |
| Inspection Condition |
Inspection Procedure |
Reference |
- Shift lever: "P".
- HEV ready.
- SOC: 30 to 80%.
- No DTC.
|
- Connect KDS to "Data Link Connector (DLC)".
- Perform "Vehicle S/W Management" of concerned component with KDS.
|
Fig.1 to 5 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

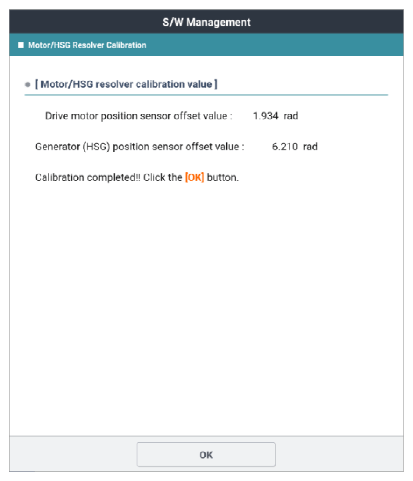

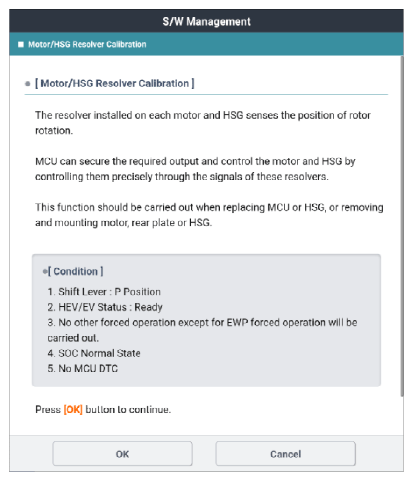

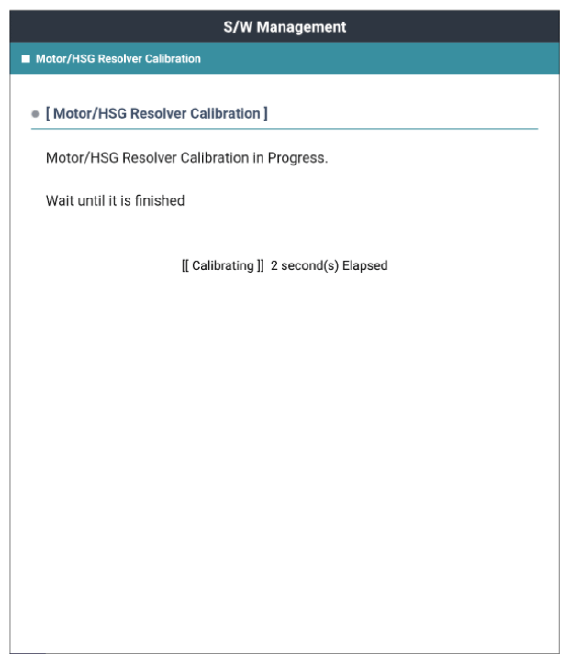

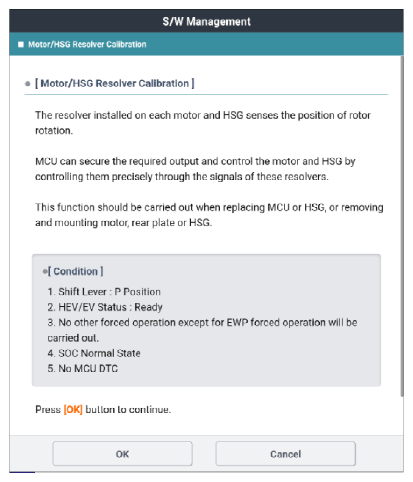

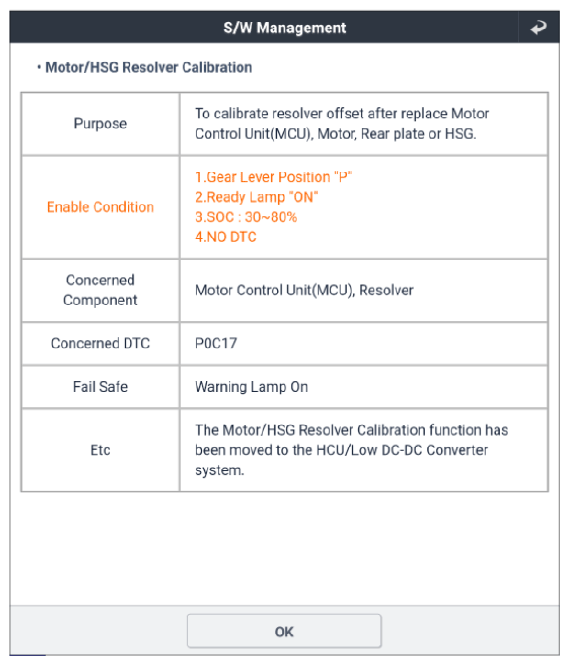

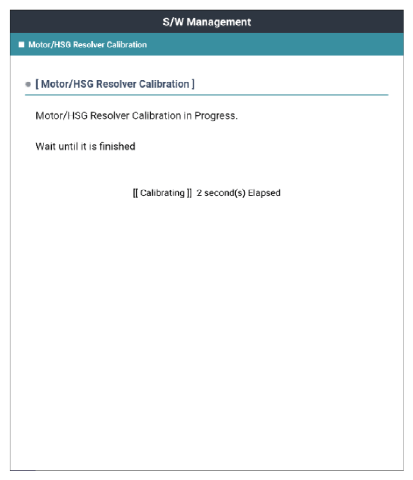

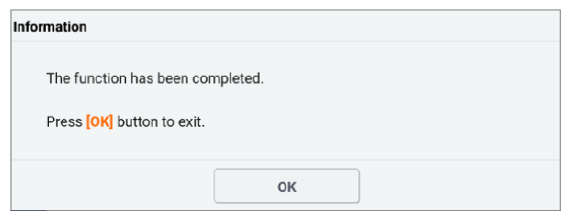

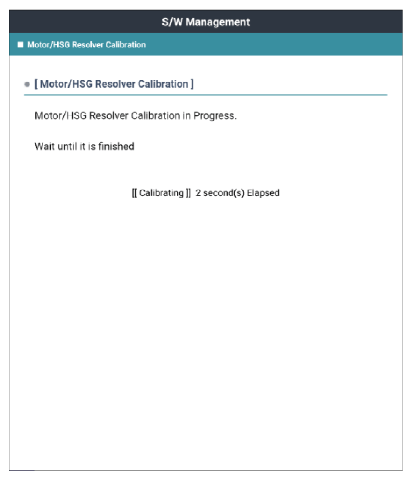

Fig.1 to 5) "Motor/HSG Resolver Calibration" procedure
