Monitor KDS Data
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

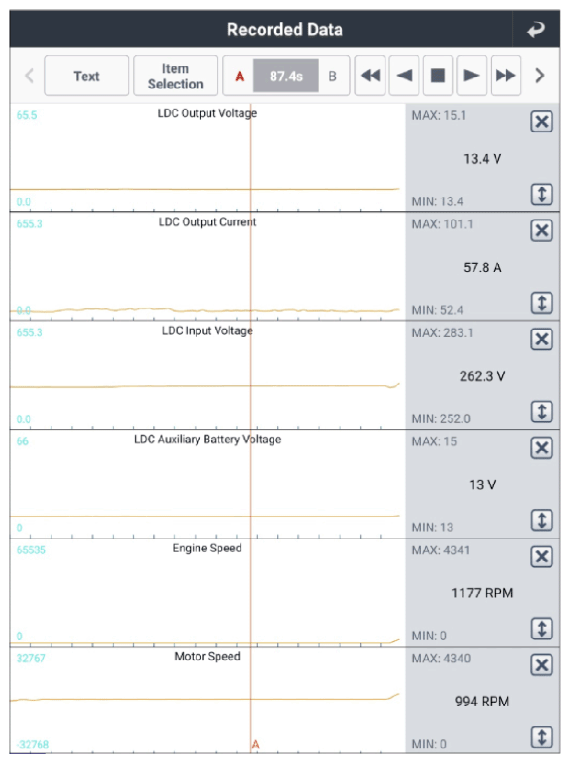

Fig.1 |
Good
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "Verification Of Repair " procedure.
No Good
- Repair or replace as necessary and then go to "Verification Of Repair " procedure after performing "System Inspection" procedure.
CAUTION:
* After replacing the LDC (HPCU), it is necessary to operate the "Vehicle S/W Management"
