Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

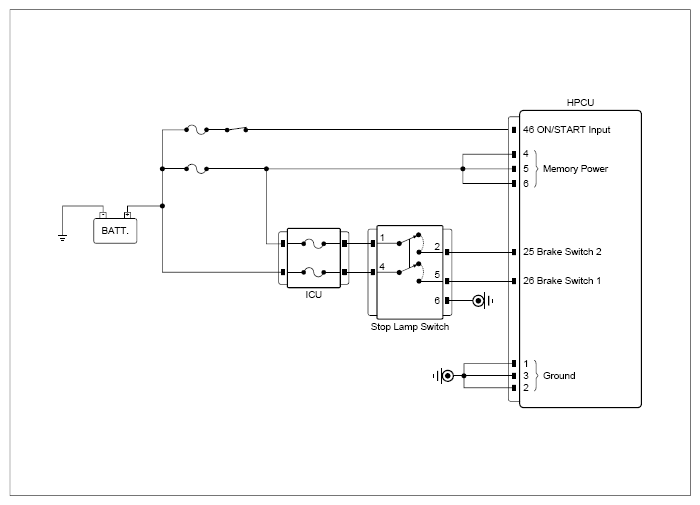

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Stop lamp switch connector | 1 (ON/START Input) | Chassis ground | - | Approx. auxiliary battery voltage |
| Stop lamp switch connector | 4 (Memory power) | Chassis ground | - | ||
|
Stop lamp switch connector | 2 (brake switch signal 2) | Chassis ground | - | ∞ (infinity)Ω |
| Stop lamp switch connector | 5 (brake switch signal 1) | Chassis ground | - | ||
| Stop lamp switch connector | 2 (brake switch signal 2) | HPCU connector | 25 (brake switch signal 2) | Approx. below 1Ω | |
| Stop lamp switch connector | 5 (brake switch signal 1) | HPCU connector | 26 (brake switch signal 1) | Approx. below 1Ω | |
Good
- Check stop lamp switch connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace stop lamp switch as necessary and then Go to "Verification Of Repair " procedure.
No Good
- Check for open/short in harness.
- Repair as necessary and then Go to "Verification Of Repair " procedure.
