Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ADAS-PRK connector | 1, 14, 16, 19 (power) | Chassis ground | - | B+ |
|
ADAS-PRK connector | 3, 12 (ground) | Chassis ground | - | Approx. below 1Ω |

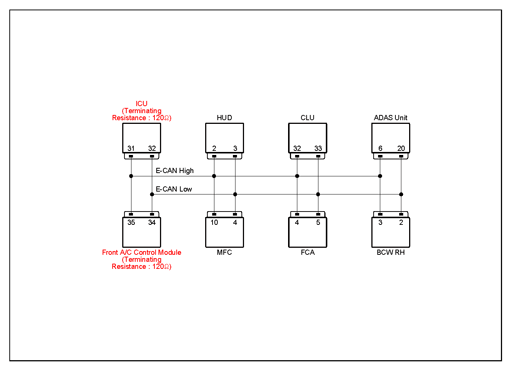

| ADAS-PRK connector | 6 (E-CAN high) | ADAS-PRK connector | 20 (E-CAN low) | Approx. 60Ω | |
| ICU (component side) | 31 (E-CAN high) | ICU (component side) | 32 (E-CAN low) | Approx. 120Ω | |
| Front A/C control module (component side) | 35 (E-CAN high) | Front A/C control module (component side) | 34 (E-CAN low) | Approx. 120Ω | |
| ADAS-PRK connector | 6 (E-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| ADAS-PRK connector | 20 (E-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| ADAS-PRK connector | 6 (E-CAN high) | ICU connector | 31 (E-CAN high) | Approx. below 1Ω | |
| ADAS-PRK connector | 20 (E-CAN low) | ICU connector | 32 (E-CAN low) | Approx. below 1Ω | |
|

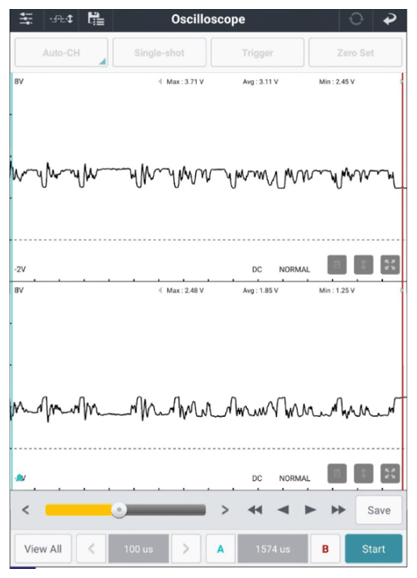

ADAS-PRK connector | 6 (E-CAN high) | Chassis ground | - | Fig.1 |
| ADAS-PRK connector | 20 (E-CAN low) | Chassis ground | - | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
