Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
MDPS connector | 1 (Memory power) | Chassis ground | - | B+ |
| MDPS connector | 1 (ON/START Input) | Chassis ground | - | B+ | |
|
MDPS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |

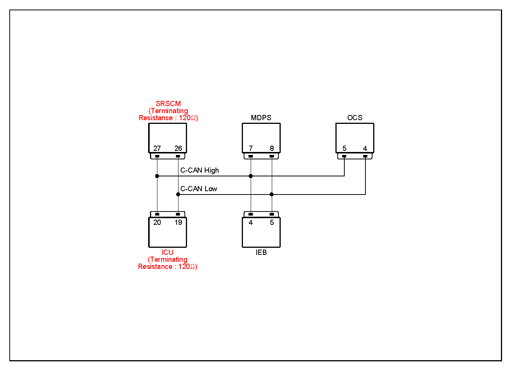

| MDPS connector | 7 (C-CAN high) | MDPS connector | 8 (C-CAN low) | Approx. 60Ω | |
| SRSCM (component side) | 27 (C-CAN high) | SRSCM (component side) | 26 (C-CAN low) | Approx. 120Ω | |
| ICU (component side) | 20 (C-CAN high) | ICU (component side) | 19 (C-CAN low) | Approx. 120Ω | |
| MDPS connector | 7 (C-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| MDPS connector | 8 (C-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| MDPS connector | 7 (C-CAN high) | ICU connector | 20 (C-CAN high) | Approx. below 1Ω | |
| MDPS connector | 8 (C-CAN low) | ICU connector | 19 (C-CAN low) | Approx. below 1Ω | |
|
MDPS connector | 7 (C-CAN high) | Chassis ground | - | Fig.1 |
| MDPS connector | 8 (C-CAN low) | Chassis ground | - | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
