Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
TCM connector | 16, 67, 68 (power) | Chassis ground | - | B+ |
|
TCM connector | 71, 73, 74 (ground) | Chassis ground | - | Approx. below 1Ω |

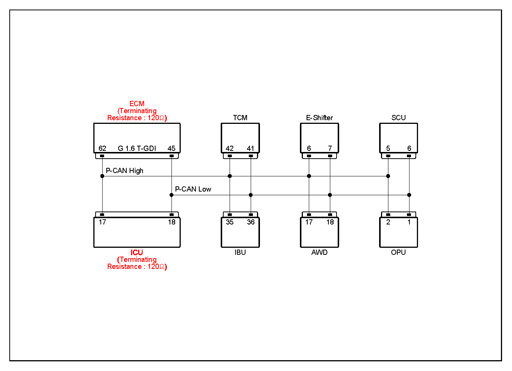

| TCM connector | 42 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| TCM connector | 41 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| TCM connector | 42 (P-CAN high) | ICU connector | 17 (P-CAN high) | Approx. below 1Ω | |
| TCM connector | 41 (P-CAN low) | ICU connector | 18 (P-CAN low) | Approx. below 1Ω | |
| TCM connector | 42 (P-CAN high) | TCM connector | 41 (P-CAN low) | Approx. 60Ω | |
| ECM (component side) | 62 (P-CAN high) | ECM (component side) | 45 (P-CAN low) | Approx. 120Ω | |
| ICU (component side) | 17 (P-CAN high) | ICU (component side) | 18 (P-CAN low) | Approx. 120Ω | |
|

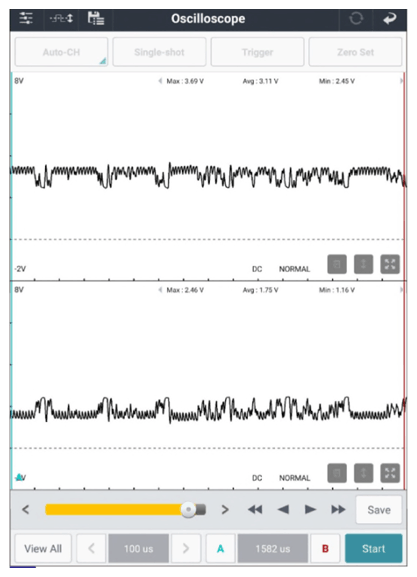

TCM connector | 42 (P-CAN high) | Chassis ground | - | Fig.1 |
| TCM connector | 41 (P-CAN low) | Chassis ground | - | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
