Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
SHVU FR connector (W/O SVM) | 1, 3, 15, 17 (power) | Chassis ground | - | B+ |
| SHVU FR connector (with SVM) | 8, 11, 12, 20 (power) | Chassis ground | - | B+ | |
|
SHVU FR connector (W/O SVM) | 14, 28 (ground) | Chassis ground | - | Approx. below 1Ω |
| SHVU FR connector (with SVM) | 7, 8 (ground) | Chassis ground | - | Approx. below 1Ω | |
| SHVU FR connector (W/O SVM) | 5 (B-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| SHVU FR connector (W/O SVM) | 4 (B-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| SHVU FR connector (with SVM) | 4 (B-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| SHVU FR connector (with SVM) | 3 (B-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| SHVU FR connector (W/O SVM) | 5 (B-CAN high) | ICU connector | 7 (B-CAN high) | Approx. below 1Ω | |
| SHVU FR connector (W/O SVM) | 4 (B-CAN low) | ICU connector | 23 (B-CAN low) | Approx. below 1Ω | |
| SHVU FR connector (with SVM) | 4 (B-CAN high) | ICU connector | 7 (B-CAN high) | Approx. below 1Ω | |
| SHVU FR connector (with SVM) | 3 (B-CAN low) | ICU connector | 23 (B-CAN low) | Approx. below 1Ω | |
| SHVU FR connector (W/O SVM) | 5 (B-CAN high) | SHVU FR connector (W/O SVM) | 4 (B-CAN low) | Approx. 60Ω | |
| SHVU FR connector (with SVM) | 4 (B-CAN high) | SHVU FR connector (with SVM) | 3 (B-CAN low) | Approx. 60Ω | |
| ICU (component side) | 7 (B-CAN high) | ICU (component side) | 23 (B-CAN low) | Approx. 120Ω | |
| IBU (component side) | 36 (B-CAN high) | IBU (component side) | 35 (B-CAN low) | Approx. 120Ω | |
|

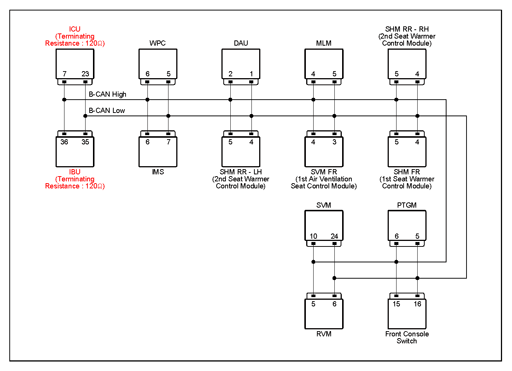

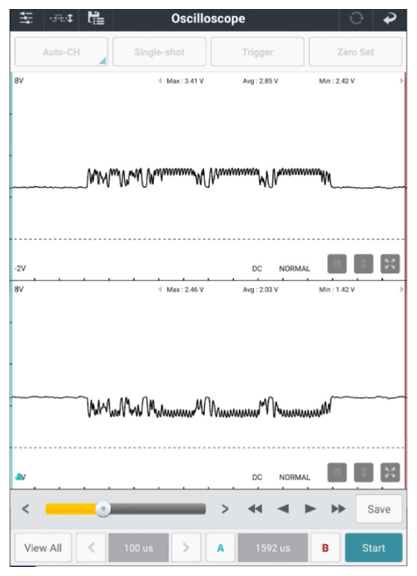

SHVU FR connector (W/O SVM) | 5 (B-CAN high) | Chassis ground | - | Fig.1 |
| SHVU FR connector (W/O SVM) | 4 (B-CAN low) | Chassis ground | - | ||
| SHVU FR connector (with SVM) | 4 (B-CAN high) | Chassis ground | - | Fig.1 | |
| SHVU FR connector (with SVM) | 3 (B-CAN low) | Chassis ground | - | ||
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and Go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
- Repair or replace as necessary and Go to "Verification Of Repair " procedure.
