Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

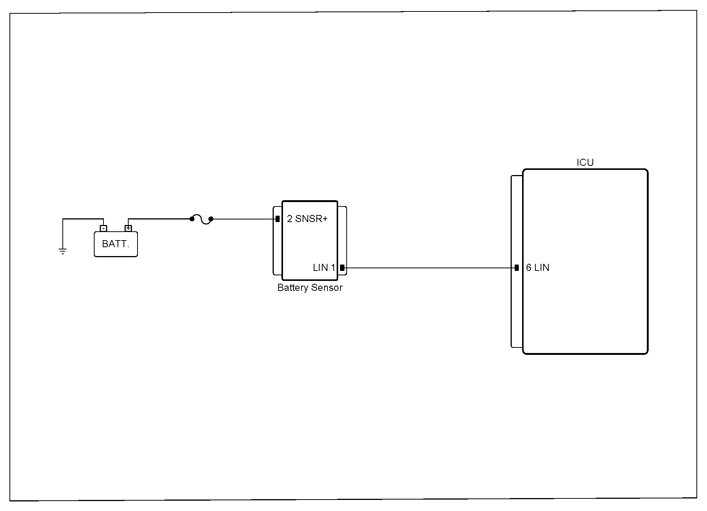

G14967501Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 Battery sensor connector 2 (power) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect auxiliary battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 Battery sensor connector 1 (LIN) ICU connector 6 (LIN) Approx. below 1Ω
Battery sensor connector 1 (LIN) Chassis ground - ∞ (infinity)Ω
  1. Engine "ON".

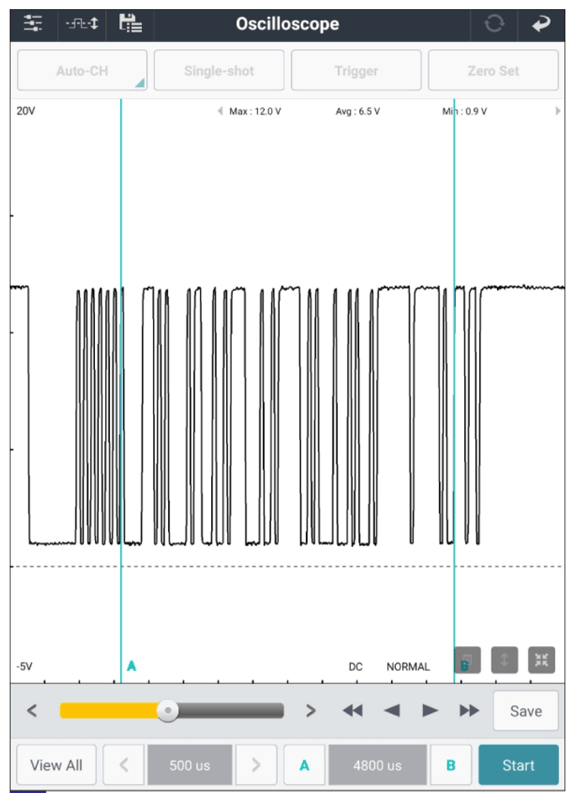

 Battery sensor connector 2 (power) Chassis ground - Fig.1
Battery sensor connector 1 (LIN) Chassis ground -
G14967502Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
