Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

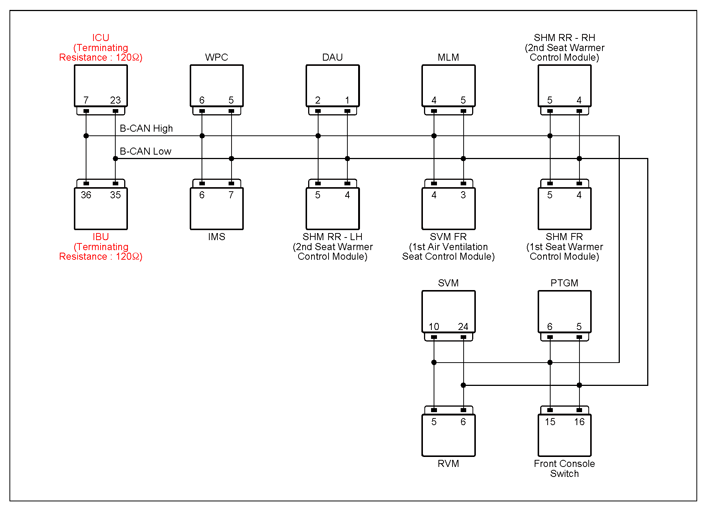

G14967494Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 IMS connector 1, 2, 14, 28 (power) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect auxiliary battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 IMS connector 3, 4, 20 (ground) Chassis ground - Approx. below 1Ω
IMS connector 6 (B-CAN high) IMS connector 7 (B-CAN low) Approx. 60Ω
IMS connector 6 (B-CAN high) Chassis ground - ∞ (infinity)Ω
IMS connector 7 (B-CAN low) Chassis ground - ∞ (infinity)Ω
IMS connector 6 (B-CAN high) ICU connector 7 (B-CAN high) Approx. below 1Ω
IMS connector 7 (B-CAN low) ICU connector 23 (B-CAN low) Approx. below 1Ω
  1. Ignition "ON".
 IMS connector 6 (B-CAN high) Chassis ground - Fig.1
IMS connector 7 (B-CAN low) Chassis ground -
G14967495Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
