Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

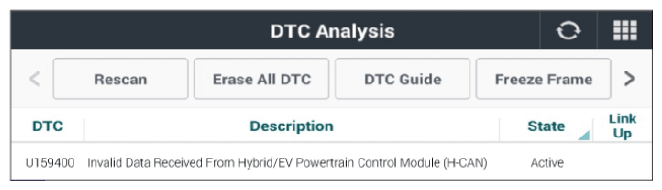

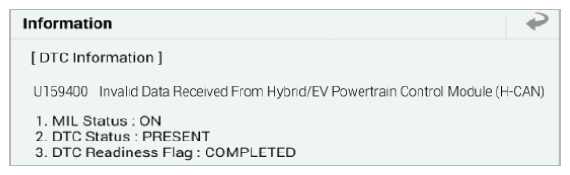

Fig.1 to 2 |
Active Fault
- Go to "WIRING INSPECTION " procedure.
- After disconnecting the CAN communication line, reconnect it and check that the same DTC is set.
- If the same DTC is not set, go to "Verification Of Repair " procedure.
History/Pending Fault
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "Verification Of Repair " procedure.
