Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

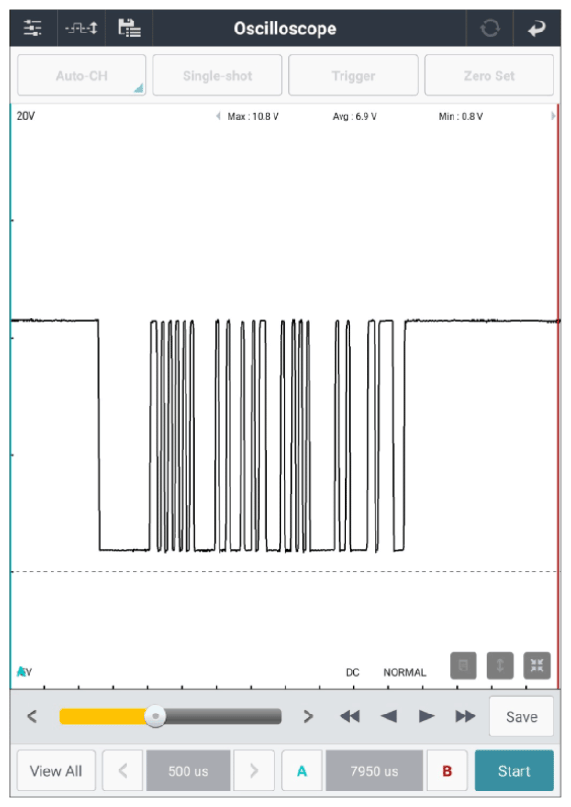

Ignition "ON". Connect the VMI to KDS.	EWP connector	2 (LIN)	Chassis ground	-	Fig.1
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	EWP connector	4 (ON/START Input)	Chassis ground	-	B+
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	EWP connector	3 (ground)	Chassis ground	-	Approx. below 1Ω

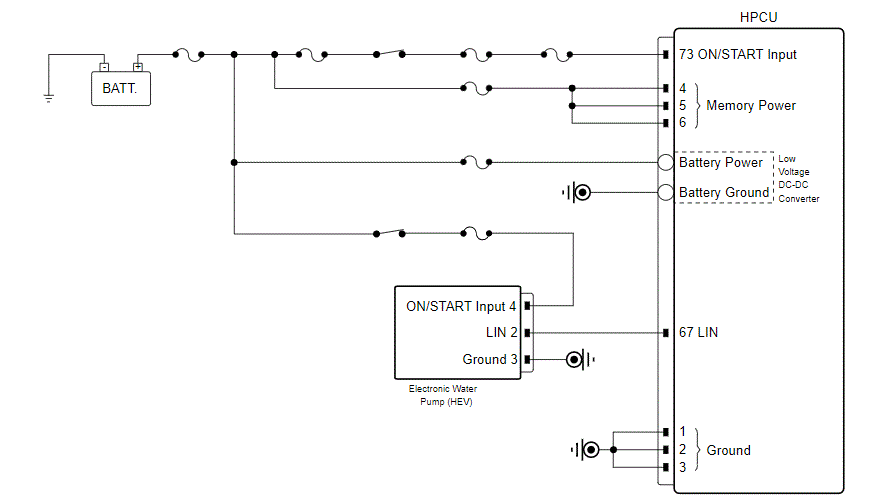

	EWP connector	2 (LIN)	Chassis ground	67 (LIN)	Approx. below 1Ω

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
Repair or replace EWP as necessary and then go to "Verification Of Repair " procedure.

No Good

Repair open or short in circuit and then go to "Verification Of Repair " procedure.

CAUTION: Perform "Motor/HSG Resolver Calibration" with KDS in Case HPCU or motor is replaced or repaired, and then operate Electric Water Pump (EWP) to recirculate and refill coolant.
