Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECM (component side) | 80 (H-CAN high) | ECM (component side) | 81 (H-CAN low) | Approx. 120Ω |
| BMU (component side) | 16 (H-CAN high) | BMU (component side) | 15 (H-CAN low) | Approx. 120Ω | |
| BMU connector | 4 (H-CAN high) | BMU connector | 3 (H-CAN low) | Approx. 120Ω | |
|
BMU connector | 1, 2, 12 (power) | Chassis ground | - | B+ |
|
BMU connector | 32, 33 (ground) | Chassis ground | Approx. below 1Ω | |
| BMU connector | 16 (H-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| BMU connector | 15 (H-CAN low) | Chassis ground | ∞ (infinity)Ω | ||
|

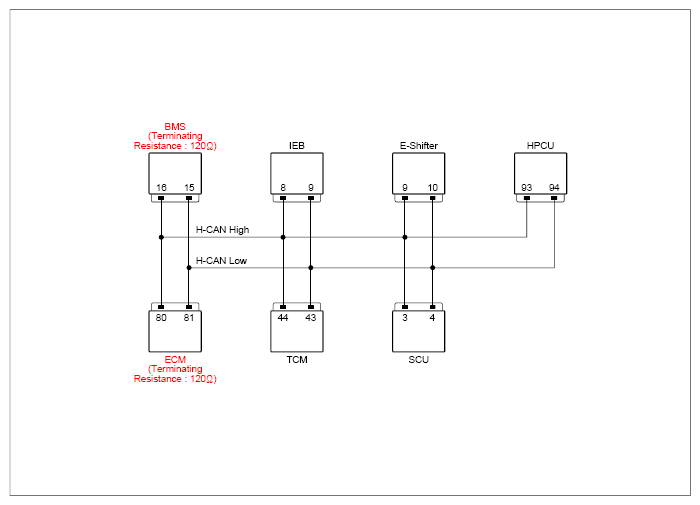

BMU connector | 16 (H-CAN high) | Chassis ground | - | Fig.1 |
| BMU connector | 15 (H-CAN low) | Chassis ground | - | ||
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace BMU as necessary and then go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then go to "Verification Of Repair " procedure.
